Hose clamps

Schlauchklemme, 9, 2 Pos, bl

  • Decription Pinch Clamp, for Tube Size D: 9, 2 Positions
  • Dimension D: 9
  • Colour blue
  • Material PP
  • Item Code QTM 1-0311-1
  • Drawing View

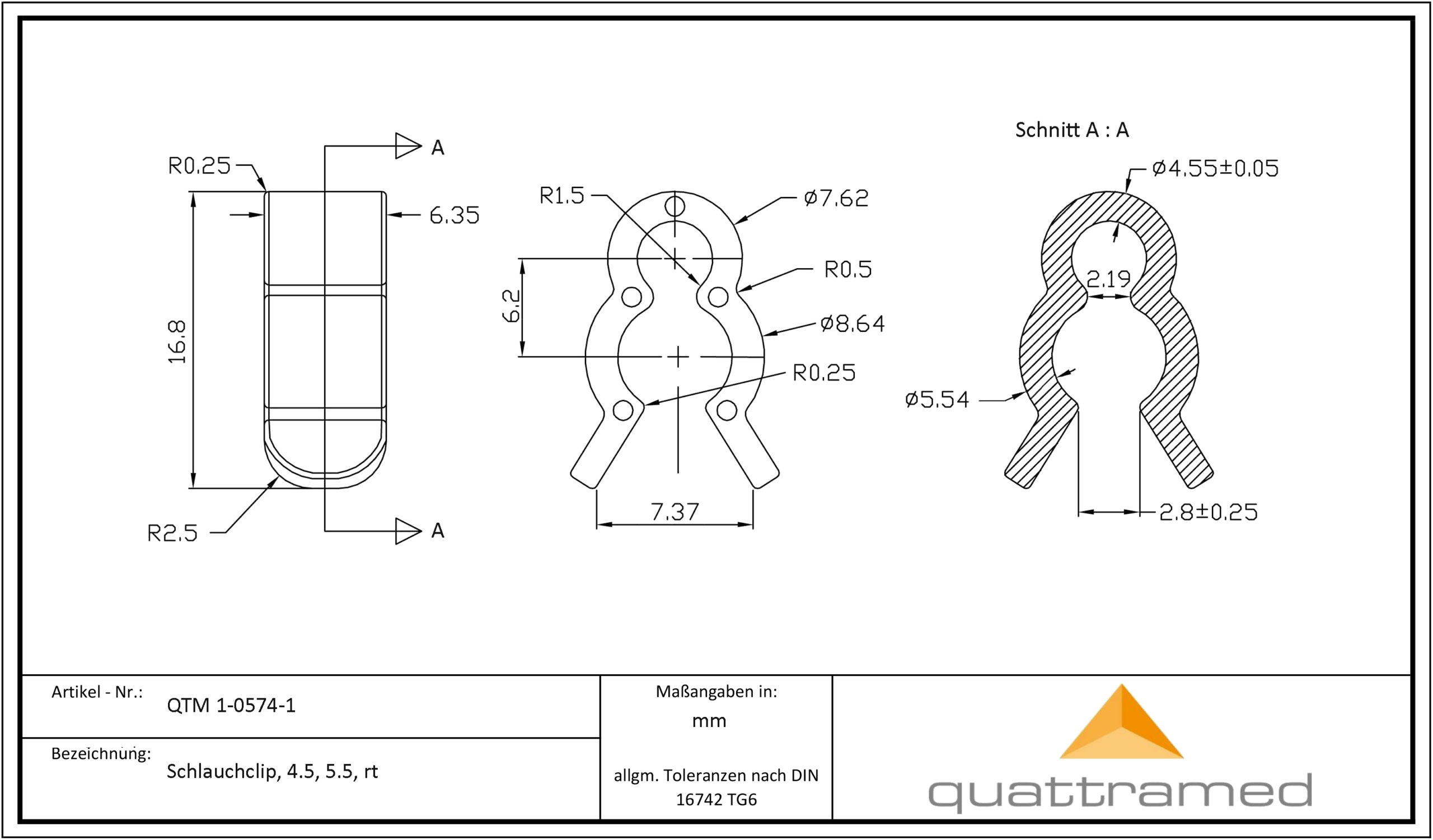

Schlauchclip, 4.5, 5.5, rt

  • Description Tubing Clip, for Tube Size: D: 4.5, 5.5
  • Dimension D: 4.5, 5.5
  • Colour red
  • Material PP
  • Item Code QTM 1-0574-1
  • Drawing View

Schlauchclip, 4.5, 5.5, ws

  • Description Tubing Clip, for Tube Size D: 4.5, 5.5
  • Dimension D: 4.5, 5.5
  • Colour white
  • Material PP
  • Item Code QTM 1-0574-0
  • Drawing View

Schlauchklemme, 3.0, gn

  • Description Pinch Clamp, for Tube Size D: 3.0
  • Dimension D: 3.0
  • Colour green
  • Material PP
  • Artikelnummer QTM 1-0546-0
  • Zeichnung Ansicht

Schlauchklemme, 5.5, bl, #140143

  • Description Pinch Clamp, for Tube Size D: 5.5
  • Dimension D: 5.5
  • Colour blue
  • Material PP
  • Item Code QTM 1-0545-2
  • Drawing View

Schlauchklemme, 5.5, rt, #140141

  • Description Pinch Clamp, for Tube Size D: 5.5
  • Dimension D: 5.5
  • Colour red
  • Material PP
  • Item Code QTM 1-0545-1
  • Drawing View

Schlauchklemme, 6.8, bl

  • Description Pinch Clamp, for Tube Size D: 6.8
  • Dimension D: 6.8
  • Colour blue
  • Material PE
  • Item Code QTM 1-0544-2
  • Drawing View

Schlauchklemme, 6.8, rt

  • Description Pinch Clamp, for Tube Size D: 6.8
  • Dimension D: 6.8
  • Colour red
  • Material PE
  • Item Code QTM 1-0544-1
  • Drawing View

Schlauchklemme, 6.8, ws

  • Description Pinch Clamp, für Tube Size D: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material PE
  • Item Code QTM 1-0544-0
  • Drawing View

Schlauchklemme, 6.8, 2 Pos, bl, #14107

  • Description Pinch Clamp, 2 Positions, for Tube Size: D: 6.8
  • Dimension D: 6.8
  • Colour blue
  • Material PP
  • Item Code QTM 1-0014-1
  • Drawing n/a

Schlauchklemme, 4.1, ws

  • Description Pinch Clamp, for Tube Size D: 4.1
  • Dimension D: 4.1
  • Colour white
  • Material PP
  • Item Code QTM 1-0561-0
  • Drawing View

Schlauchklemme, 4.1, gl

  • Description Pinch Clamp, for Tube Size D: 4.1
  • Dimension D: 4.1
  • Colour yellow
  • Material PP
  • Item Code QTM 1-0561-3
  • Drawing View

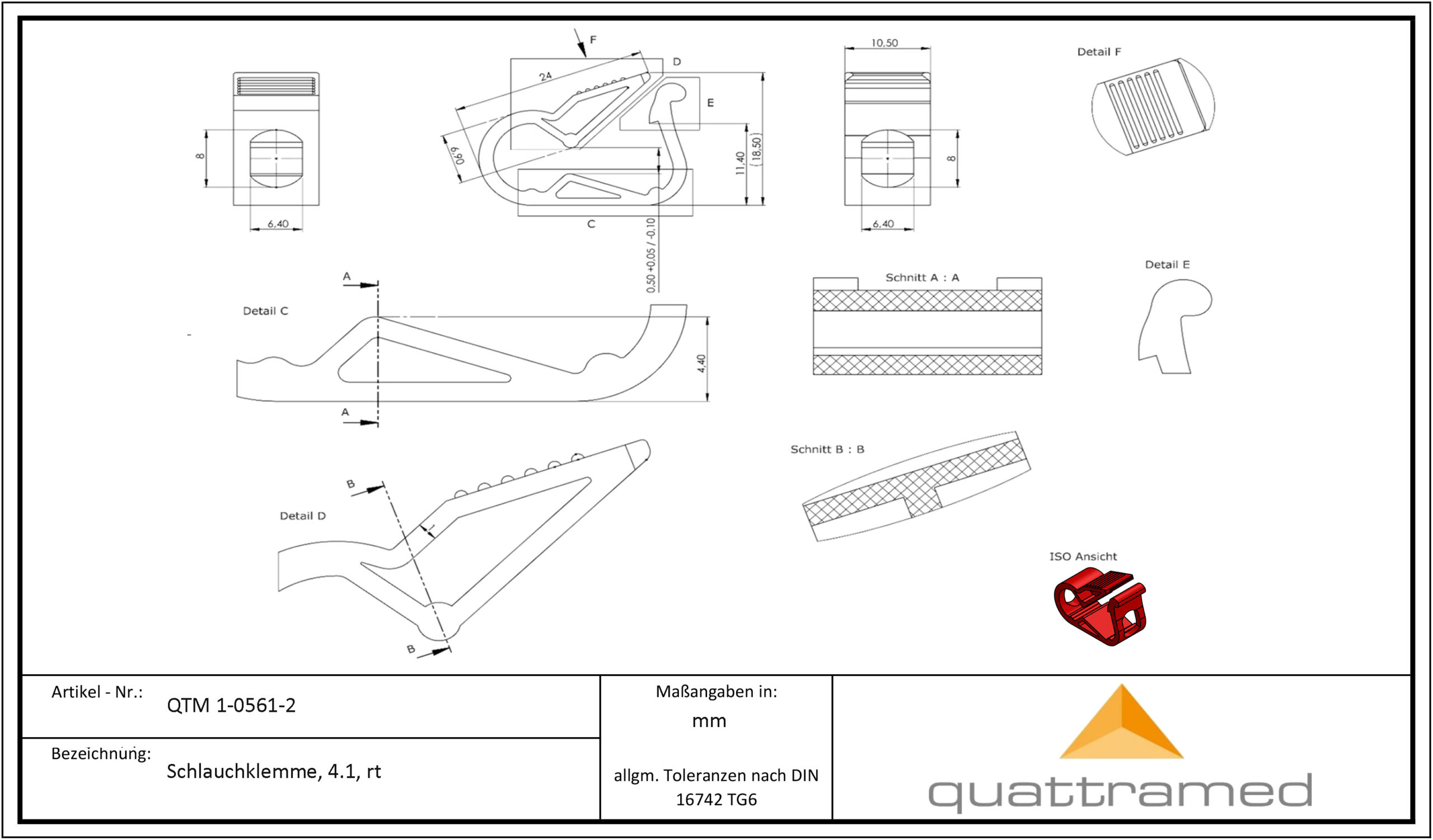

Schlauchklemme, 4.1, rt

  • Description Pinch Clamp, for Tube Size D: 4.1
  • Dimension D: 4.1
  • Colour red
  • Material PP
  • Item Code QTM 1-0561-2
  • Drawing View

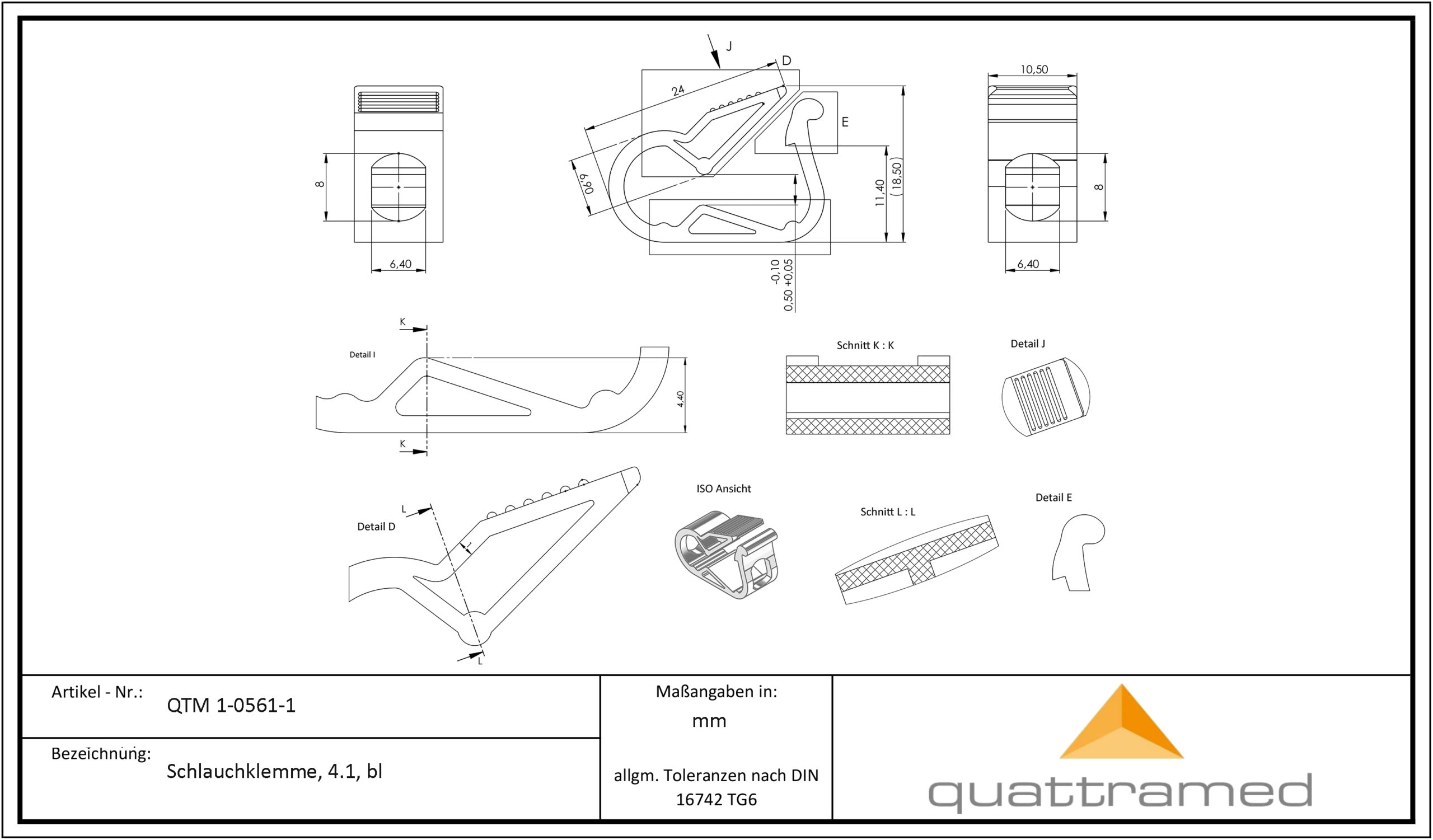

Schlauchklemme, 4.1, bl

  • Description Pinch Clamp, for Tube Size D: 4.1
  • Dimension D: 4.1
  • Colour blue
  • Material PP
  • Item Code QTM 1-0561-1
  • Drawing View

Schlauchklemme, 5.5, ws, #140142

  • Description Pinch Clamp, for Tube Size D: 5.5
  • Dimension D: 5.5
  • Farbe white
  • Material PP
  • Item Code QTM 1-0545-0
  • Drawing View

Schlauchklemme, 6.8, 5 Pos, ws

  • Description Pinch Clamp, 6 Positions, for Tube D: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material PP
  • Item Code QTM 1-0006-1
  • Drawing View

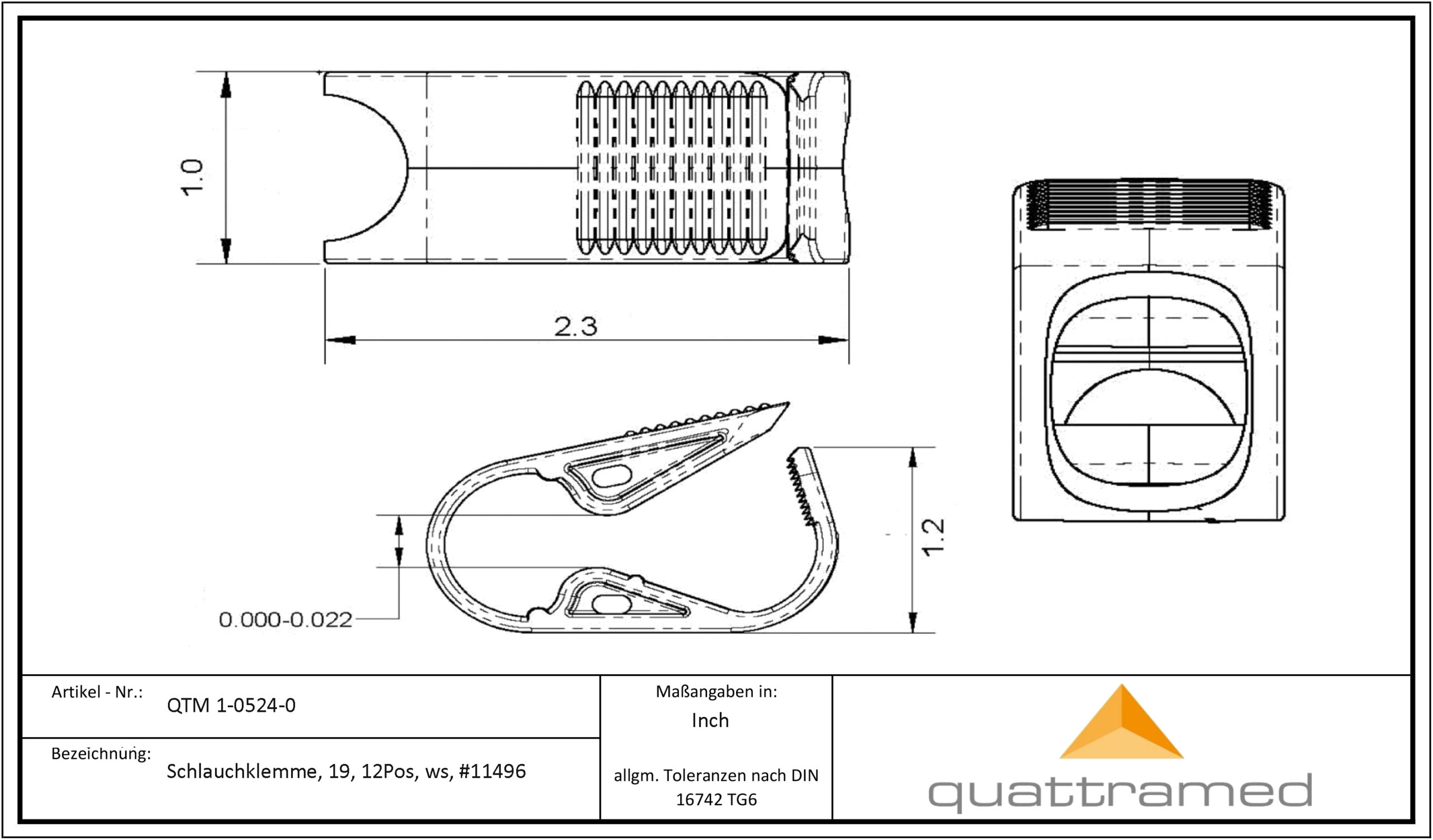

Schlauchklemme, 19, 12Pos, ws, #11496

  • Description Pinch Clamp, 12 Positions, for Tube Size D: 19
  • Dimension D: 19
  • Colour white
  • Material PBT
  • Item Code QTM 1-0524-0
  • Drawing View

Schlauchklemme, 6.8, 6 Pos, ws

  • Description Pinch Clamp, 6 Positions, for Tube Size: D: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material PP
  • Item Code QTM 1-0012-1
  • Drawing View

Schlauchklemme, 5.1, 2 Pos, ws, #13997

  • Description Pinch Clamp, 2 Positions, for Tube Size: D: 5.1
  • Dimension D: 5.1
  • Colour white
  • Material PP
  • Item Code QTM 1-0014-0
  • Drawing View

Schlauchclip, 12.7, twin, nat, #12079

  • Description Tube clip, for Tube bundles up to D: 12.7mm (0.500 inch), both sides
  • Dimension D: 12.7 (0.500 inch)
  • Colour natural
  • Material PA
  • Item Code QTM 1-0079-0
  • Drawing View

Schlauchklemme, 7.0, ge, #13608

  • Description Pinch Clamp, free wide: 7mm, for Tubes up to: D: 5.5mm
  • Dimension w: 7.0mm
  • Colour yellow
  • Material POM
  • Item Code QTM 1-0101-0
  • Drawing View

Schlauchklemme, 16.0, ws, #14034

  • Description Pinch Clamp, inner wide: 16mm; for Tube Size: D: 0.500 inch (12.7mm)
  • Dimension w: 16.0mm
  • Farbe white
  • Material PBT
  • Item Code QTM 1-0109-0
  • Drawing View

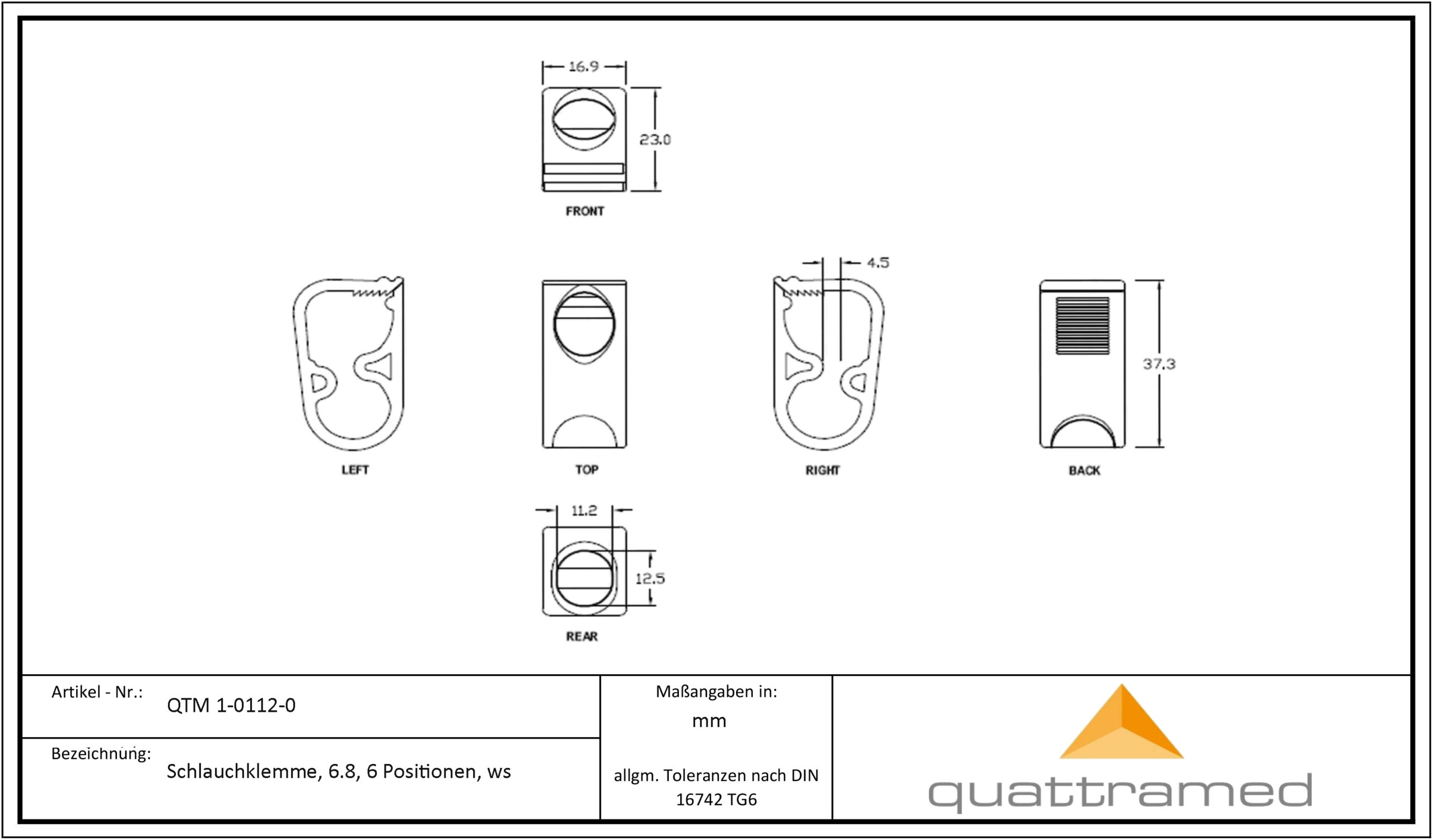

Schlauchklemme, 6.8, 6 Positionen, ws

  • Description Pinch Clamp, 6 Positions, for Tube Size: D: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material PP
  • Item Code QTM 1-0112-0
  • Drawing View

Schlauchklemme, 5.5, ws

  • Description Pinch Clamp, for Tube Size: D: 5.5
  • Dimension D: 5.5
  • Colour white
  • Material PA
  • Item Coode QTM 1-0184-0
  • Drawing View

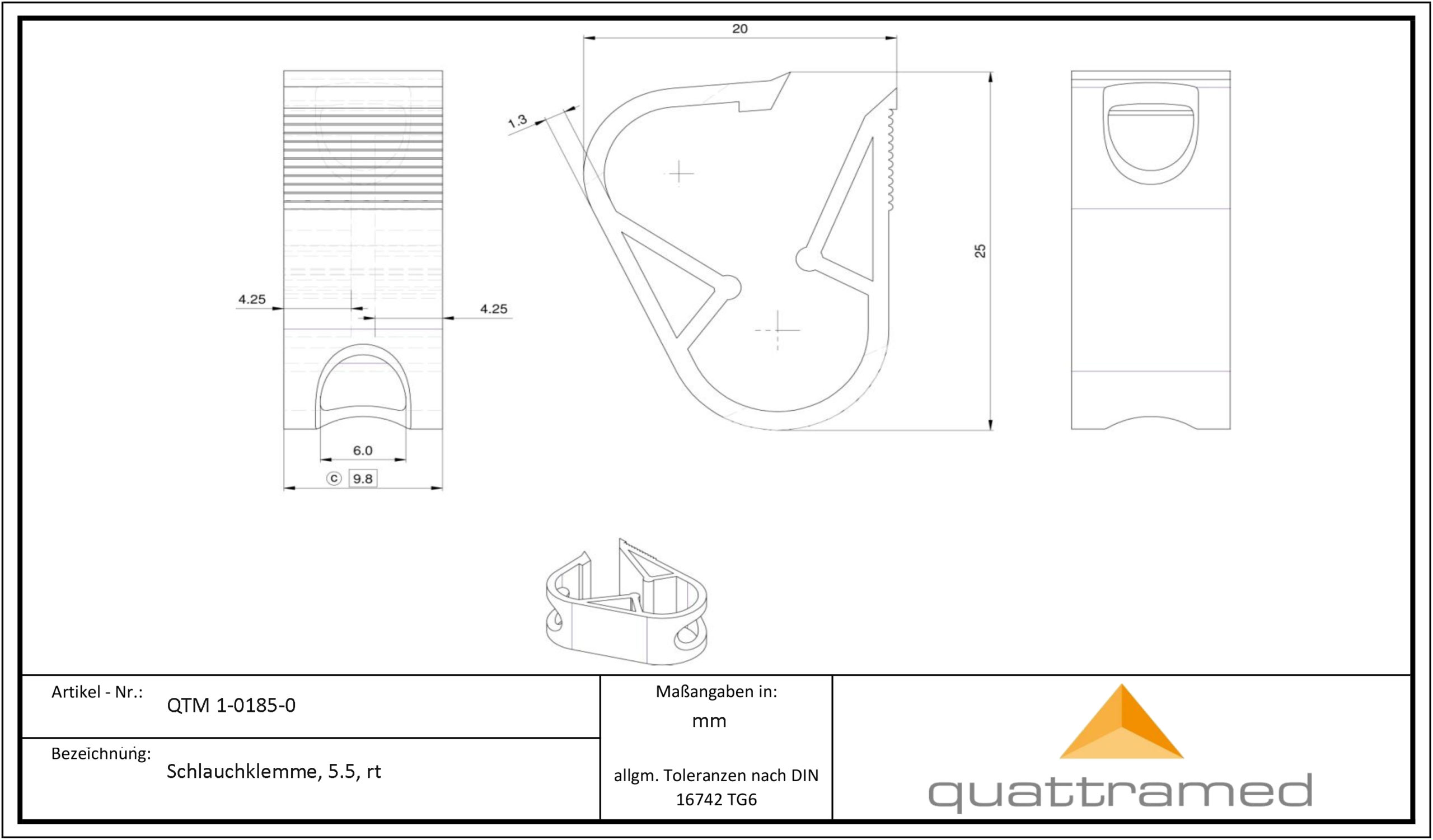

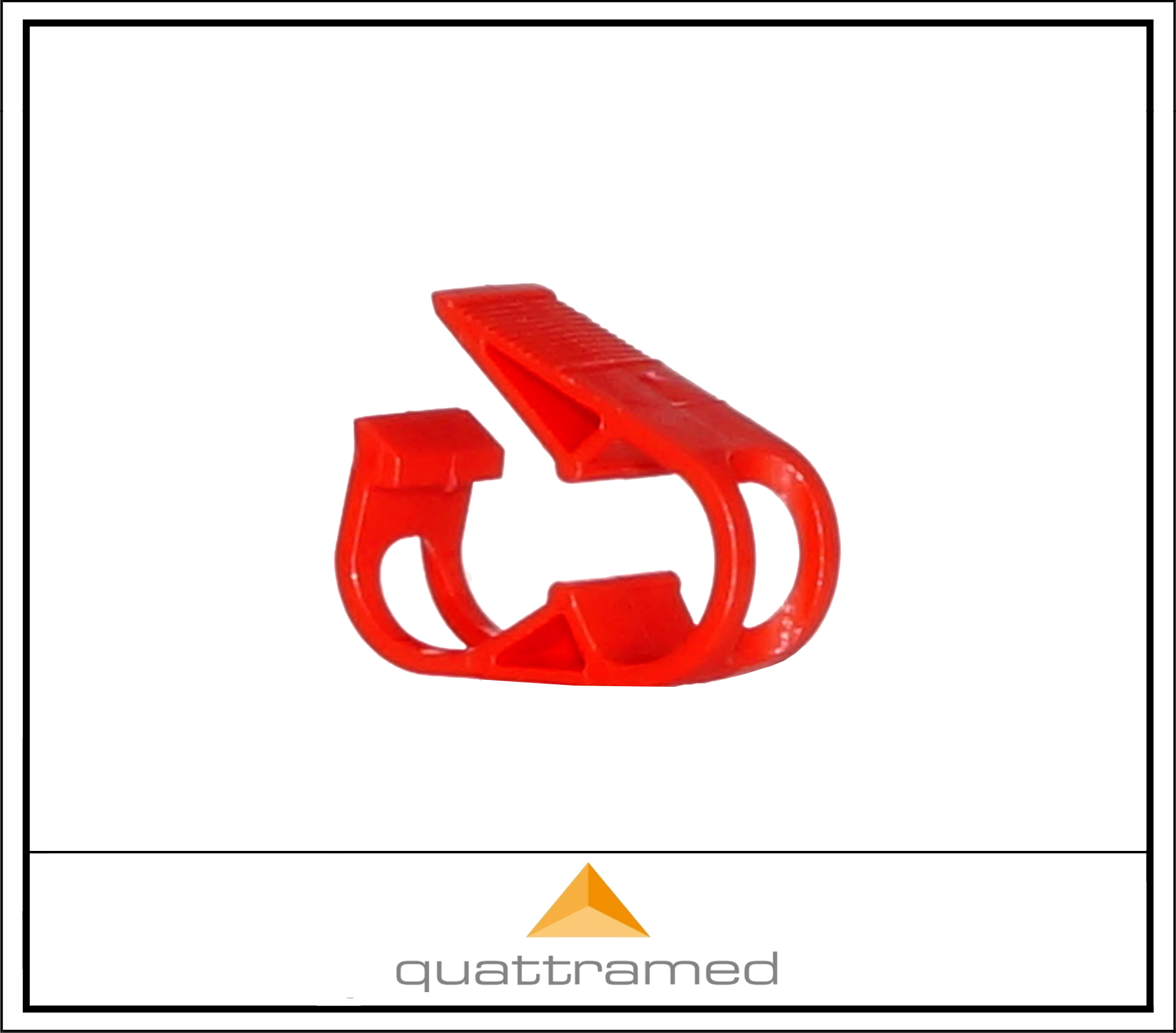

Schlauchklemme, 5.5, rt

  • Description Pinch Clamp, for Tube Size: D: 5.5
  • Dimension D: 5.5
  • Colour red
  • Material POM
  • Item Code QTM 1-0185-0
  • Drawing View

Schlauchklemme, 5.5, bl

  • Description Pinch Clamp, for Tube Size: D: 5.5
  • Dimension D: 5.5
  • Colour blue
  • Material POM
  • Item Code QTM 1-0186-0
  • Drawing View

Schlauchklemme, 19, 12Pos, ws, #25659

  • Description Pinch Clamp, 12 Positions, for Tube Size: D: 19
  • Dimension D: 19
  • Colour white
  • Material PBT
  • Item Code QTM 1-0244-1
  • Drawing View

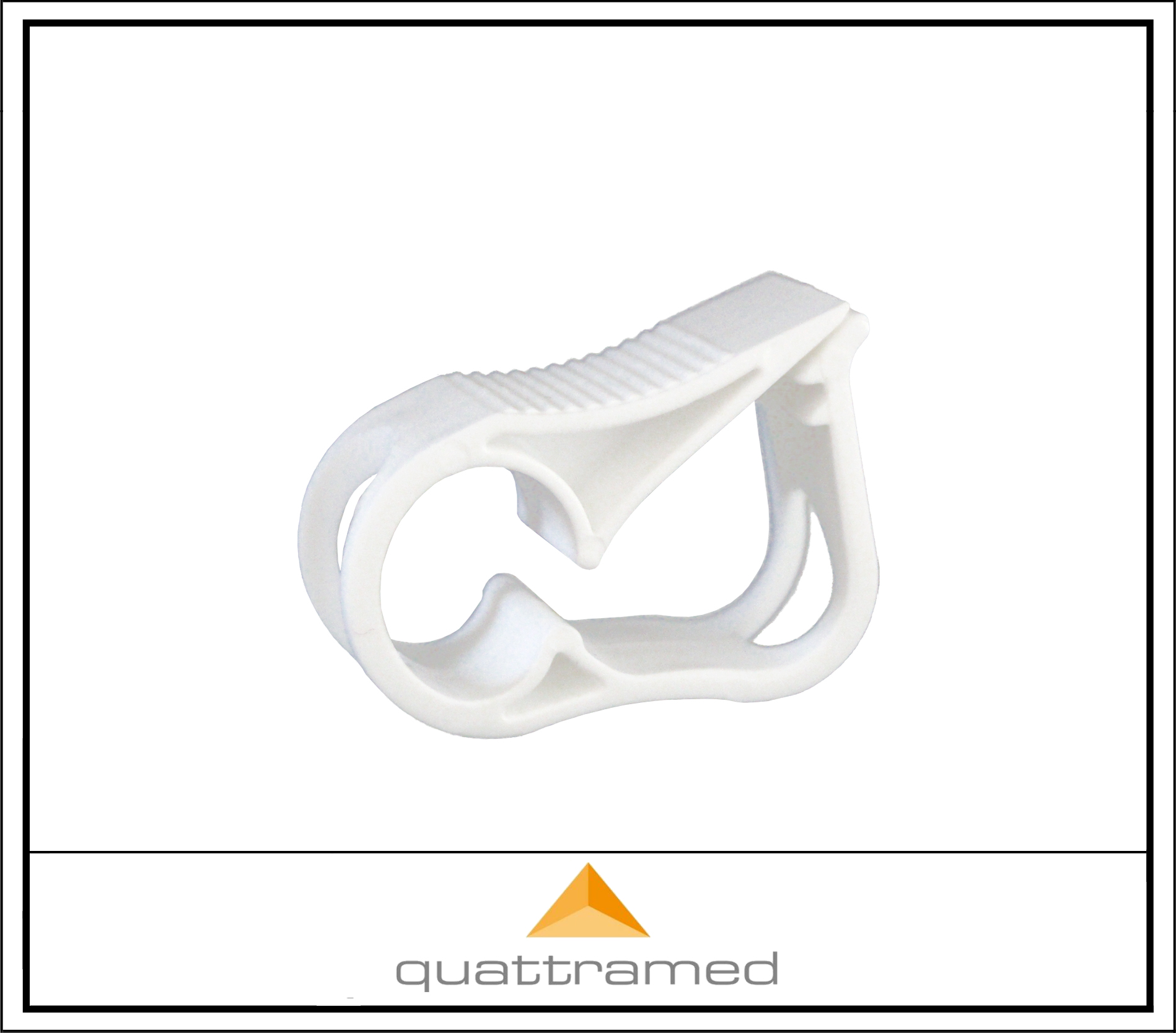

Schlauchklemme, 9, ws

  • Description Pinch Clamp, for Tube Size D: 9
  • Dimension D: 9
  • Colour white
  • Material PP
  • Item Code QTM 1-0311-0
  • Drawing View

Schlauchklemme, 3.8, ws

  • Description Pinch Clamp, inner wide: 3.8mm for Tube Size: D: 4.1mm
  • Dimension w: 3.8
  • Colour white
  • Material PP
  • Item Code QTM 1-0320-0
  • Drawing View

Schlauchklemme, 3.8, bl

  • Description Pinch Clamp, inner wide: 3.8mm for Tube Size: D: 4.1mm
  • Dimension w: 3.8
  • Colour blue
  • Material PP
  • Item Code QTM 1-0320-1
  • Drawing View

Schlauchklemme, 3.8, rt

  • Description Pinch Clamp, inner wide: 3.8mm for Tube Size: D: 4.1mm
  • Dimension D: 3.8
  • Colour red
  • Material PP
  • Item Code QTM 1-0320-2
  • Drawing View

Schlauchklemme, 12.7, ws

  • Description Pinch Clamp, Inner wide: 12.7mm, for Tube Size 6.5-6.8mm
  • Dimension w: 12.7
  • Colour white
  • Material PP
  • Item Code QTM 1-0344-0
  • Drawing View

Schlauchklemme, 6.8, 6 Pos, ws

  • Description Pinch Clamp, 6 Positions, for Tube D: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material PP
  • Item Code QTM 1-0006-0
  • Drawing View
