Checkvalves

Rückschlagventil, HF, 3/16″, 3/16″, tr

  • Description Check Valve, High Flow – E: 3/16″; O: 3/16″
  • Dimension E: 3/16″; O: 3/16″
  • Colour transparent
  • Material PMMA, Sik
  • Item Code 1-0235-0
  • Drawing View

Rückschlagventil, HF, 1/8″, tr, #91007

  • Description Check Valve, High-Flow – Tube Size: 1/8″
  • Dimension D: 1/8″
  • Colour transparent
  • Material PMMA, SIK
  • Item Code QTM 1-0031-0
  • Drawing View

Rückschlagventil, HF, 1/4″ ID, tr, #91029

  • Description Check Valve, High Flow – Tube Size outside: 1/4″
  • Dimension Do: 1/4″
  • Colour transparent
  • Material PMMA, Sik
  • Item Code QTM 1-0046-0
  • Drawing View

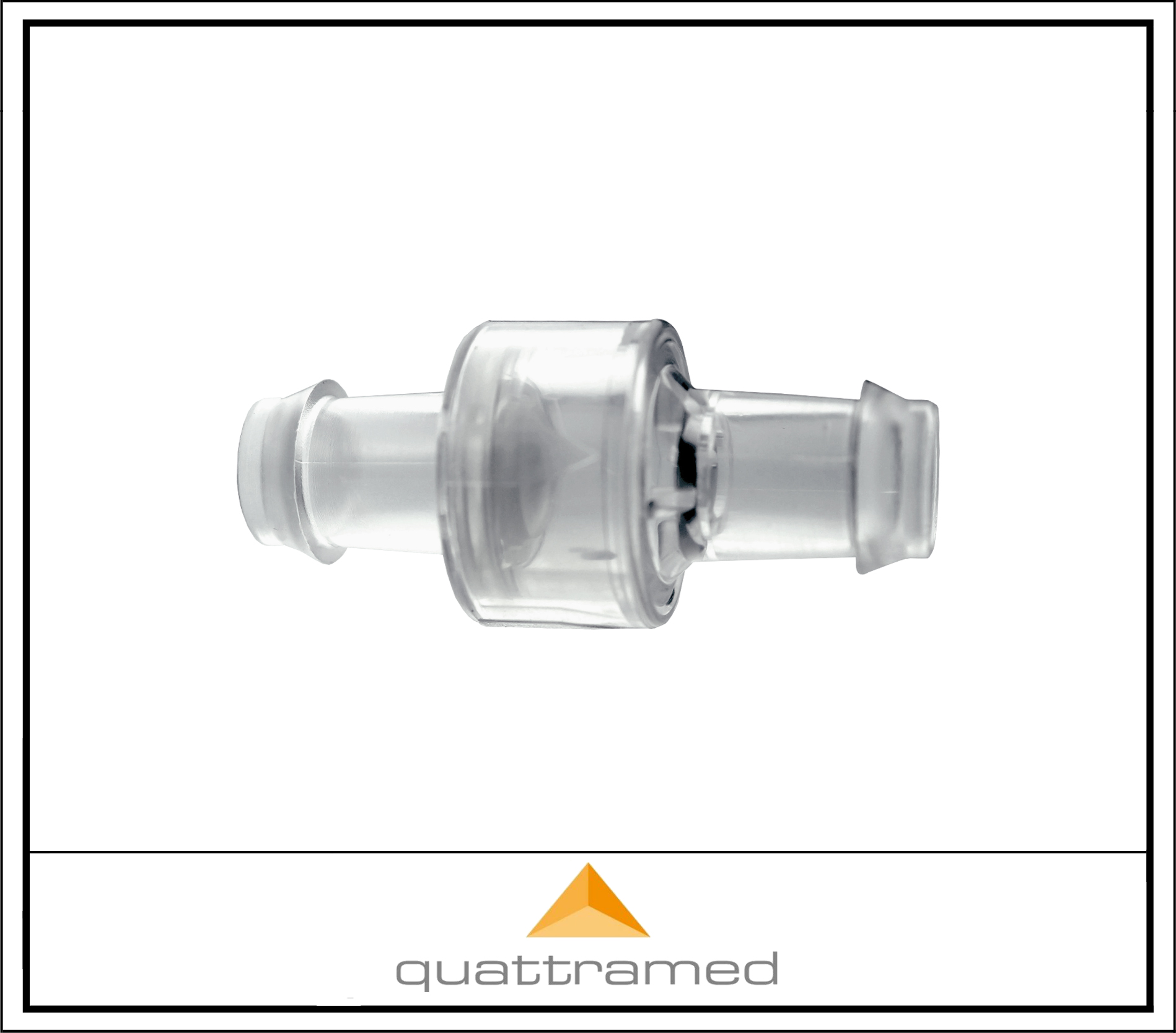

Rückschlagventil, HF, 3/8″, 3/8″, tr, #91030

  • Description Check Valve, High-Flow, E: 3/8″, O: 3/8″
  • Dimension E: 3/8″, A: 3/8″
  • Colour transparent
  • Material PMMA, SIK
  • Item Code QTM 1-0064-0
  • Drawing View

Rückschlagventil, HF, 1/4″, 1/4″, tr, #91006

  • Description Check Valve, High-Flow, E: 1/4″, O: 1/4″
  • Dimension E: 1/4″, A: 1/4″
  • Colour transparent
  • Material PMMA, SIK
  • Item Code QTM 1-0065-0
  • Drawing View

Rückschlagventil, HF, 5/32″, 5/32″, tr, #91028

  • Description Check Valve, High Flow, E: 5/32″, O: 5/32″
  • Dimension E: 5/32″, A: 5/32″
  • Colour transparent
  • Material PMMA, Sik
  • Item Code QTM 1-0066-0
  • Drawing View

Rückschlagventil, Lw, 3/16″, ws, #80063

  • Description Check Valve, Luer activatable – Tube Size: 3/16″
  • Dimension Lf, D: 3/16″
  • Colour white
  • Material PP, PES, SS, Nitrile
  • Item Code QTM 1-0099-0
  • Drawing View

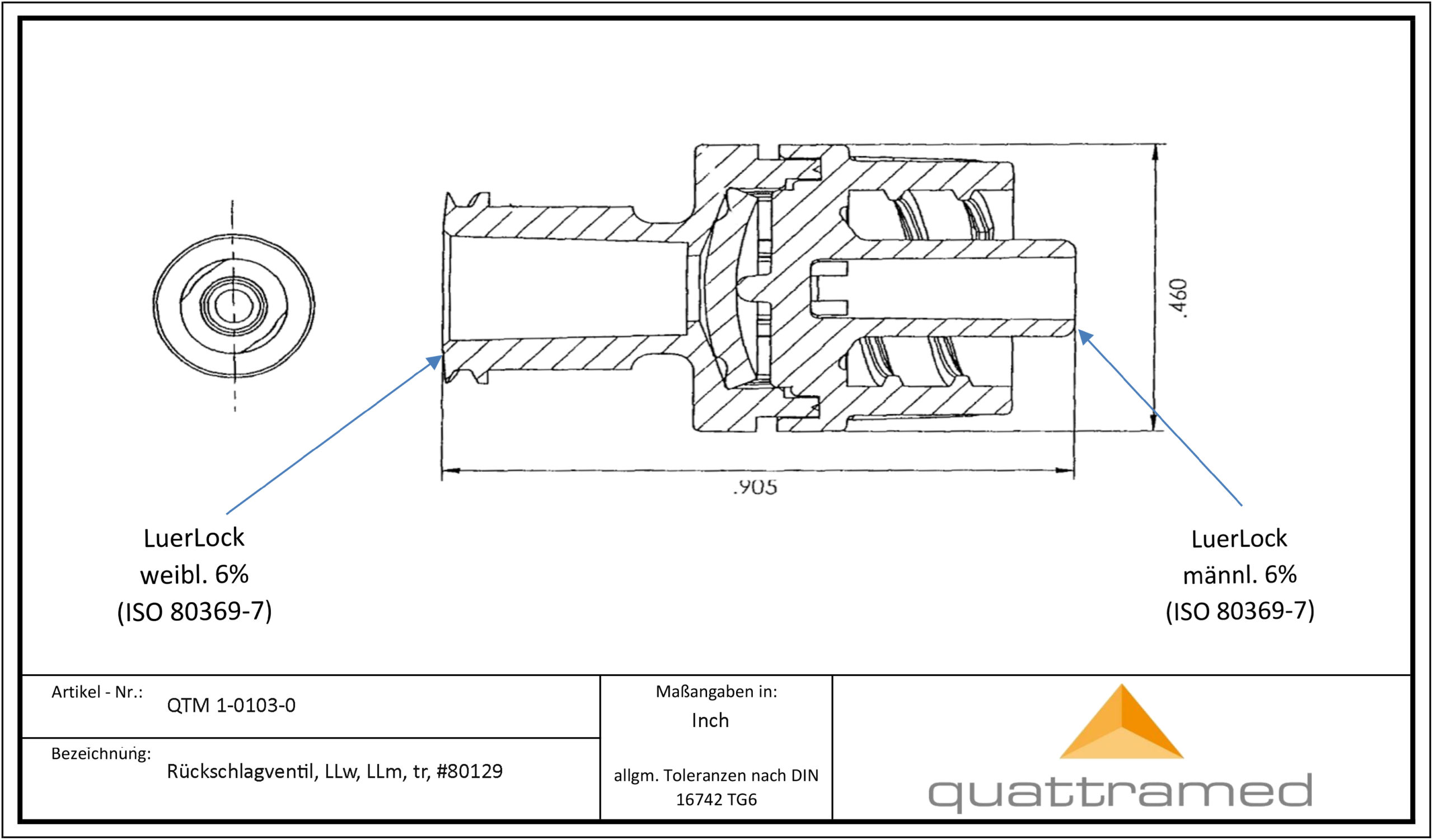

Rückschlagventil, LLw, LLm, tr, #80129

  • Description Check Valve, Female Luer Lock, Male Luer Lock
  • Dimension LLf, LLm
  • Colour transparent
  • Material PC, SIK
  • Item Code QTM 1-0103-0
  • Drawing Code

Rückschlagventil, 3.3, 3.3, tr, #80057

  • Description Check Valve, In: 3.3 (Luer male), Out: 3.3 (Luer male)
  • Dimension 3.3 (Lm), 3.3 (Lm)
  • Colour transparent
  • Material PC, SIK
  • Item Code QTM 1-0135-0
  • Drawing View

Rückschlagventil, LLw, LLm, ge/tr, #80065

  • Description Check Valve, Female Luer Lock, Male Luer Lock
  • Dimension LLf, LLm
  • Colour yellow-transparent
  • Material PC, SIK
  • Item Code QTM 1-0239-0
  • Drawing View

Rückschlagventil, LLm, LLw, nadelfr., rt/tr, #90403

  • Description Check Valve, Male Luer Lock, Female Luer Lock, needleless, Sampling port with integrated Check Valve to avoid accidental injections into the arterial line
  • Dimension LLm, LLf
  • Colour red-transparent
  • Material ABS, PC, Sik
  • Item Code QTM 1-0249-0
  • Drawing View

Rückschlagventil, 3.7, 3.7, ge/tr, #80092

  • Description Check Valve, E: 3.7, O: 3.7
  • Dimension E: 3.7, A: 3.7
  • Colour yellow-transparent
  • Material PC, SIK
  • Item Code QTM 1-0264-0
  • Drawing View

Rückschlagventil, LLw, 3.7, ge/tr, #80088

  • Description Check Valve, Female Luer Lock – Tube Size: 3.7
  • Dimension LLf, D: 3.7
  • Colour yellow-transparent
  • Material PC, SIK
  • Item Code QTM 1-0265-0
  • Drawing View

Rückschlagventil, LLw, LLm, tr, #80114

  • Description Check Valve, Female Luer Lock, Male Luer Lock
  • Dimension LLf, LLm
  • Colour transparent
  • Material PC, ABS, SIK
  • Item Code QTM 1-0365-0
  • Drawing View

Rückschlagventil, Lw, 7.5, tr, #80466

  • Description Check Valve, Luer activatable, Do: 7.5
  • Dimension Lf, Da: 7.5
  • Colour transparent
  • Material PC, SIK, PP
  • Item Code QTM 1-0381-0
  • Drawing View

Rückschlagventil, Lw, 7.5, tr/gn, PC, #80467

  • Description Check Valve, Luer activatable, Do: 7.5
  • Dimension Lf, Da: 7.5
  • Colour transparent-green
  • Material PC, SIK, PP
  • Item Code QTM 1-0381-1
  • Drawing View

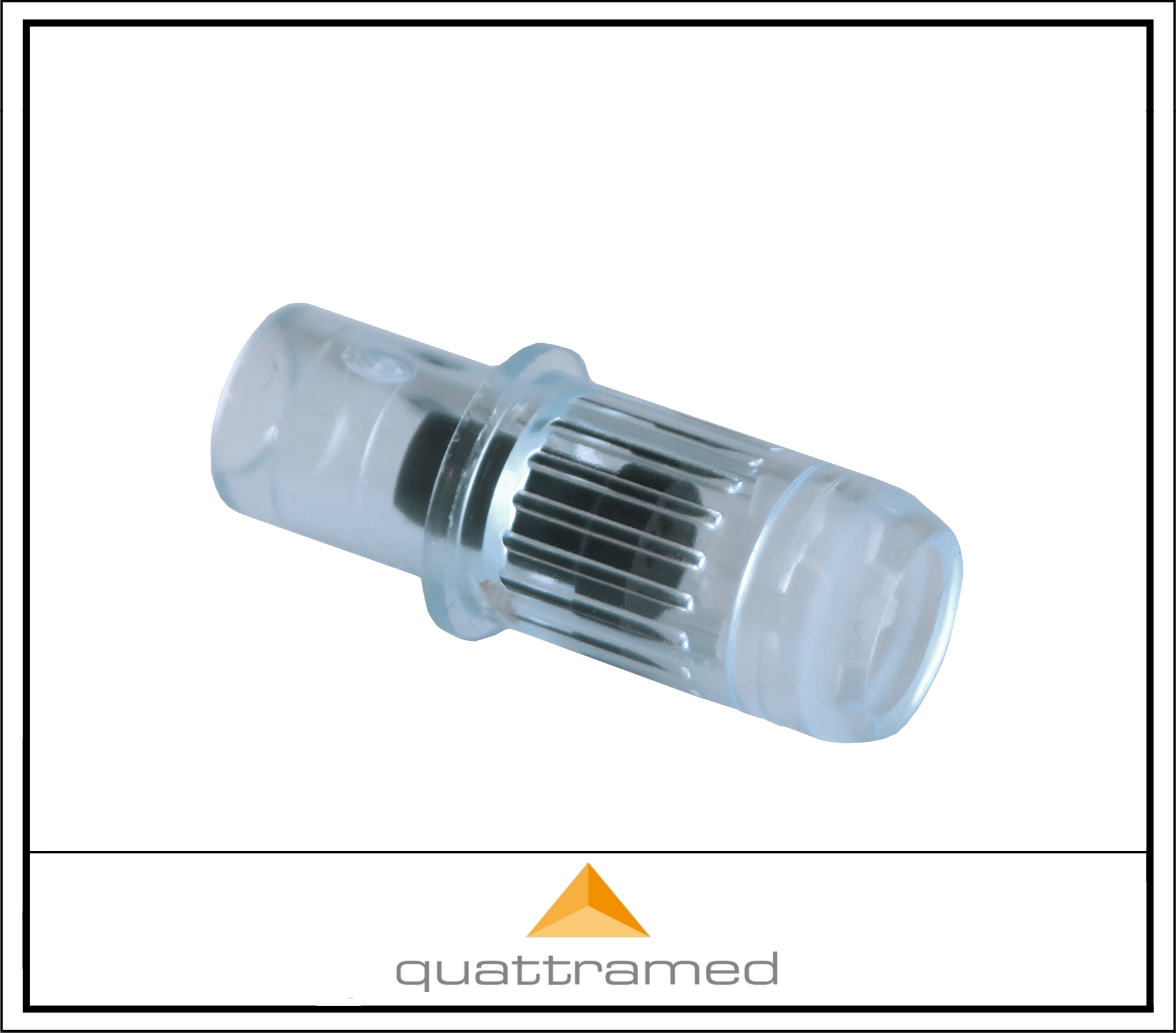

Adapter, Lw L akt./Rückschlagventil, OD 7.2, tr, #80470

  • Description Connector, female Luer Luer activated/Check Valve – Tube Size outside: 6.4
  • Dimension Lf L act., Do: 7.2
  • Colour transparent
  • Material PVC, SIK, PP
  • Item Code QTM 1-0391-0
  • Drawing View

Ventileinsatz Duckbill, 4, 4, ws

  • Description Valve Insert Duckbill, for Check Valves, D: 4, L: 4
  • Dimension D: 4 x L: 4
  • Colour white
  • Material SIK
  • Item Code QTM 1-0421-0
  • Drawing View

Rückschlagventil, 4.1, 4.1, ws/tr, #85059

  • Description Check Valve, E: 4.1, O: 4.1
  • Dimension E: 4.1, A: 4.1
  • Colour white-transparent
  • Material ABS, SIK
  • Item Code QTM 1-0425-0
  • Drawing View

Rückschlagventil, LLm, LLw, tr

  • Description Check Valve, Male Luer Lock, Female Luer Lock
  • Dimension LLm, LLf
  • Colour transparent
  • Material PC, SIK
  • Item Code QTM 1-0004-0
  • Drawing View
