Adapter norm

Sicherheitsverbinder Lm 6.4, tr

  • Description Safety Connector Luer Male – Tube Size 6.4
  • Dimension Lm, D: 6.4
  • Farbe transparent
  • Material PMMA
  • Item Code QTM 1-0514-0
  • Drawing View

Sicherheitsverbinder Lm, 6.4, tr, #91010

  • Description Safety Connector Luer Male – Tube Size 6.4
  • Dimension Lm, D: 6.4
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0514-x
  • Drawing View

Sicherheitsverbinder Lw, 6.4, tr

  • Description Sicherheitsverbinder Luer weibl. – Schlauchsitz: 6.4
  • Dimension Lf, D: 6.4
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0516-0
  • Drawing View

Sicherheitsverbinder Lw, 6.4, tr, #91009

  • Description Sicherheitsverbinder Luer weibl. – Schlauchsitz: 6.4
  • Dimension Lf, D: 6.4
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0516-x
  • Drawing View

Adapter, LLm, 8.6, tr/bl

  • Description Connector, Male Luer Lock – Tube Size: 8.6
  • Dimension LLm, D: 8.6
  • Colour translucent-blue
  • Material ABS, PC
  • Item Code QTM 1-0501-1
  • Drawing View

Adapter, HD, LLm, rot, 3.0, tr/bl, #12679

  • Description High Pressure Connector, Male Luer Lock – Tube Size: 3.0, rotating
  • Dimension LLm, D: 3.0
  • Colour transparent with a blue ring
  • Material n/a
  • Item CodeQTM 1-0009-0
  • Drawing n/a

Adapter, LLw, 3.4-3.2, tr, #71350

  • Description Connector, Female Luer Lock – Tube Size inside: 3.2 or outside: 3.4
  • Dimension LLf, Di: 3.2, Da: 3.4
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0015-0
  • Drawing View

Adapter, nadelfr. LL aktivert, LLm, nat, #80363

  • Description Connector, needleless, Luer Lock activated, Male Luer Lock
  • Dimension LLm
  • Colour natural
  • Material PP, SIK, PVC
  • Item Code QTM 1-0018-0
  • Drawing View

Adapter, LLm, 3.6, tr, #11592

  • Description Connector, Male Luer Lock – Tube Size: 3.6
  • Dimension LLm, D: 3.6
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0020-0
  • Drawing View

Adapter, LLw, 6-7, ws

  • Description Connector, Female Luer Lock – Tube Size inside: 6 or outside: 7
  • Dimension LLf, Di: 6, Da: 7
  • Colour white
  • Material n/a
  • Item Code QTM 1-0042-0
  • Drawing n/a

Adapter, LLm, Olive, 4.0, tr, #11575

  • Description Connector, Male Luer Lock, olive – Tube Size: 4.0
  • Dimension LLm, D: 4.0
  • Colour transparent
  • Material n/a
  • Item Code QTM 1-0043-0
  • Drawing View

Adapter, LLm, 5/32″, tr, #11551

  • Description Connector, Male Luer Lock – Tube Size: 5/32″
  • Dimension LLm, D: 5/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0043-1
  • Drawing View

Mutter f. Lm, tr, #89345

  • Description Nut for Male Luer
  • Dimension Lm
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0044-0
  • Drawing View

Adapter, HD, LLm, rot, 3/16″, tr, #80353

  • Description High Pressure Connector, Male Luer Lock, rotating – Tube Size: 3/16″
  • Dimension LLm, D: 3/16″
  • Colour transparent
  • Material PC, EPDM, SIK
  • Item Code 1-0048-0
  • Drawing View

Transferadapter, 20, LLm, bl, #12609

  • Description Transfer Vial Connector – Tube Size: 20, Male Luer Lock
  • Dimension D: 20, LLm
  • Colour blue
  • Material n/a
  • Item Code QTM 1-0053-0
  • Drawing n/a

Adapter HLM, 3/8″, 3/8″, 2LLw, tr, #27202

  • Description Connector for ECC, E: 3/8″, O: 3/8″, 2Female Luer Lock (Heart-Lung Machine)
  • Dimension E: 3/8″, A: 3/8″, 2LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0054-0
  • Drawing View

Adapter HLM, 3/8″, 3/8″, 2LLw, tr

  • Description Connector for ECC, E: 3/8″, O: 3/8″, 2Female Luer Lock (Heart-Lung Machine)
  • Dimension E: 3/8″, A: 3/8″, 2LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0054-1
  • Drawing View

Adapter, LLw, 1/16″, bl-transl, #11556

  • Description Connector, Female Luer Lock – Tube Size: 1/16″
  • Dimension LLf, D: 1/16″
  • Colour blue-translucent
  • Material PC
  • Item Code QTM 1-0055-0
  • Drawing View

Adapter, LLw, 1/16″, nat, #11532

  • Description Connector, Female Luer Lock – Tube Size: 1/16″
  • Dimension LLf, D: 1/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0055-3
  • Drawing View

Adapter, LLm, 1/8″, tr, #11549

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0071-0
  • Drawing View

Adapter, LLm, 1/8″, nat, #11537

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0071-1
  • Drawing View

Adapter, LLm, 1/8″, ws, #11525

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour white
  • Material PA
  • Item Code QTM 1-0071-2
  • Drawing View

Adapter, LLm, 1/8″, tr, #11561

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour transparent
  • Material PA
  • Item Code QTM 1-0071-3
  • Drawing View

Adapter, LLm, 1/4″, tr, #11555

  • Description Connector, Male Luer Lock – Tube Size: 1/4″
  • Dimension LLm, D: 1/4″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0077-0
  • Drawing View

Adapter, LLm, LLm, nat, #12090

  • Description Connector, Male Luer Lock, Male Luer Lock
  • Dimension LLm, LLm
  • Colour natural
  • Material PP
  • Item Code QTM 1-0088-0
  • Drawing View

Adapter, LLm, 3/16″, tr, #11553

  • Description Connector, Male Luer Lock – Tube Size: 3/16″
  • Dimension LLm, 3/16″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0090-0
  • Drawing View

Adapter, LLm, 3/16″, tr, #11577

  • Description Connector, Male Luer Lock – Tube Size: 3/16″
  • Dimension LLm, 3/16″
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0090-1
  • Drawing View

Adapter, LLm, 3/16″, tr, gamma, #11565

  • Description Connector, Male Luer Lock – Tube Size: 3/16″, gamma-sterilisable
  • Dimension LLm, 3/16″
  • Coloour transparent
  • Material PC
  • Item Code QTM 1-0090-2
  • Drawing View

Adapter, LLm, 1/8″, tr, #89335

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0092-0
  • Drawing View

Adapter, LLm, 1/8″, nat

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour natural
  • Material PP, PC
  • Item Code QTM 1-0092-1
  • Drawing View

Adapter, LLm, 1/8″, tr, #89341

  • Description Connector, Male Luer Lock – Tube Size: 1/8″
  • Dimension LLm, D: 1/8″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0092-2
  • Drawing View

Adapter, LLw, 6.4 , tr, #65253

  • Description Connector, Female Luer Lock – Tube Size: 6.4
  • Dimension LLf, D: 6.4
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0094-0
  • Drawing View

Adapter, LLm, LLm, tr, #17664

  • Description Connector, Male Luer Lock, Male Luer Lock
  • Dimension LLm, LLm
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0095-0
  • Drawing View

Adapter, LLw, 2.6, tr, #80127

  • Description Connector, Female Luer Lock – Tube Size: 2.6
  • Dimension LLf, D: 2.6
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0096-0
  • Drawing View

Adapter, LLw, 3/16″, nat, #11540

  • Description Connector, Female Luer Lock – Tube Size: 3/16″
  • Dimension LLf, D: 3/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0098-0
  • Drawing View

Adapter, LLw, 3/16″, tr, #11552

  • Description Connector, Female Luer Lock – Tube Size: 3/16″
  • Dimension LLf, D: 3/16″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0098-1
  • Drawing View

Adapter, LLw, 3/16″, tr, gamma, #11564

  • Description Connector, Female Luer Lock – Tube Size: 3/16″, gamma-sterilisable
  • Dimension LLf, D: 3/16″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0098-2
  • Drawing View

Adapter, LLm, LLw, tr, #11455

  • Description Connector, Male Luer Lock, Female Luer Lock
  • Dimension LLm, LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0100-0
  • Drawing View

Stufenadapter, 7-11, LLw, tr, #11519

  • Description Stepped Connector, Female Luer Lock – Tube Size inside: 7 or outside: 11
  • Dimension LLf, Di: 7, Da: 11
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0102-0
  • Drawing View

Adapter, Lm, 1/8″, tr, #89348

  • Description Connector, Male Luer – Tube Size: 1/8″
  • Dimension Lm, D: 1/8″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0106-0
  • Drawing View

Adapter, Lm, 1/8″, nat

  • Description Connector, Male Luer – Tube Size: 1/8″
  • Dimension Lm, D: 1/8″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0106-1
  • Drawing View

Adapter, LLw, 1/8″, ws, #11524

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour white
  • Material PA
  • Item Code QTM 1-0113-0
  • Drawing View

Adapter, LLw, 1/8″, nat, #11536

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0113-1
  • Drawing View

Adapter, LLw, 1/8″, bl, #11560

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour blue
  • Material PC
  • Item Code QTM 1-0113-2
  • Drawing View

Adapter, LLw, 1/8″, tr, #11548

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0113-3
  • Drawing View

Adapter, LLm, 3/32″, nat, #11535

  • Description Connector, Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0117-0
  • Drawing View

Adapter, LLm, 3/32″, tr, #11547

  • Description Connector, Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0117-1
  • Drawing View

Adapter, LLm, 3/32″, tr

  • Description Connector, Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0117-2
  • Drawing View

Adapter, LLm, 3/32″, tr, gamma, #11559

  • Description Connector, Male Luer Lock – Tube Size: 3/32″, gamma-sterilisable
  • Dimension LLm, D: 3/32
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0117-3
  • Drawing View

Adapter, LLw, 3/32″, nat, #11534

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0118-0
  • Drawing View

Adapter, LLw, 3/32″, tr, #11546

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0118-1
  • Drawing View

Adapter, LLw, 3/32″, tr

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0118-2
  • Drawing View

Adapter, LLm, 1/4″, tr, #89332

  • Description Connector, Male Luer Lock – Tube Size: 1/4″
  • Dimension LLm, D: 1/4″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0120-0
  • Drawing View

Adapter, LLm, 1/4″, tr, #89338

  • Description Connector, Male Luer Lock – Tube Size: 1/4″
  • Dimension LLm, D: 1/4″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0120-1
  • Drawing View

Adapter, LLm, 6.8, tr, #64009

  • Description Connector, Male Luer Lock – Tube Size: 6.8
  • Dimension LLm, D: 6.8
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0121-0
  • Drawing View

Adapter, LLm, 4.5, tr, #11593

  • Description Connector, Male Luer Lock – Tube Size: 4.5
  • Dimension LLm, D: 4.5
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0122-0
  • Drawing View

Adapter, LLm, 3/16″, tr, #89333

  • Description Connector, Male Luer Lock – Tube Size: 3/16″
  • Dimension LLm, D: 3/16″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0123-0
  • Drawing View

Stechdorn, large, transfer, LLw, bel, ws, #23230

  • Description Spark, big with Female Luer Lock, vented
  • Dimension LLf
  • Colour white
  • Material ABS, PE
  • Item Code QTM 1-0126-0
  • Drawing View

Adapter, LLm, 1/16″, nat, #11398

  • Description Connector, Male Luer – Tube Size: 1/16″
  • Dimension LLm, 1/16″
  • Colour natural
  • Material PVDF
  • Item Code QTM 1-0128-0
  • Drawing View

Adapter, LLm, 1/16″, nat, #11533

  • Description Connector, Male Luer – Tube Size: 1/16″
  • Dimension LLm, D: 1/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0128-1
  • Drawing View

Adapter, Lm, 1/16″, nat, #11666

  • Description Connector, Male Luer – Tube Size: 1/16″
  • Dimension Lm, D: 1/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0129-0
  • Drawing View

Adapter, Lm, 1/16″, tr, #11660

  • Description Connector, Male Luer – Tube Size: 1/16″
  • Dimension Lm, D: 1/16″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0129-1
  • Drawing View

Adapter HLM, 3/8″, 3/8″, LLw, tr

  • Description Connector for ECC, E: 3/8″, O: 3/8″, Female Luer Lock (Heart-Lung Machine)
  • Dimension E: 3/8″, A: 3/8″, LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0130-0
  • Drawing n/a

Adapter, LLw, ID 3.0, tr, #65262

  • Description Connector, Female Luer Lock – Tube Size inside: 3.0
  • Dimension LLf, Di: 3.0
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0132-0
  • Drawing View

Adapter HLM, 1/4″, 1/4″, 2 LLw, tr, #27201

  • Description Connector for ECC, E: 1/4″, O: 1/4″, 2 Female Luer Lock, (Heart-Lung Machine)
  • Dimension E: 1/4″, A: 1/4″, 2 LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0134-0
  • Drawing View

Adapter ENw, 4.1, li

  • Description Connector, Entereal – Tube Size: 4.1, 80369-3
  • Dimension ENf, D: 4.1
  • Colour purple
  • Material PVC
  • Item Code QTM 1-0157-0
  • Drawing View

Adapter, LLm, 1.7, tr, #65111

  • Description Connector, Male Luer Lock – Tube Size: 1.7
  • Dimension LLm, D: 1.7
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0169-0
  • Drawing View

Adapter, LLm, 5.5, tr

  • Description Connector, Male Luer Lock – Tube Size: 5.5
  • Dimension LLm, D: 5.5
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0180-0
  • Drawing View

Adapter, LLm, 5.5, tr, PVC

  • Description Connector, Male Luer Lock – Tube Size: 5.5
  • Dimension LLm, D: 5.5
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0180-1
  • Drawing View

Adapter, LLm, 3.1, tr/rt

  • Description Connector, Male Luer Lock – Tube Size: 3.1
  • Dimension LLm, D: 3.1
  • Colour transparent-red
  • Material ABS, PA
  • Item Code QTM 1-0181-0
  • Drawing View

Adapter, LLw, 2.7, tr

  • Description Connector, Female Luer Lock – Tube Size: 2.7
  • Dimension LLf, D: 2.7
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0182-0
  • Drawing View

Adapter, LLw, 2.7, tr

  • Description Connector, Female Luer Lock – Tube Size: 2.7
  • Dimension LLf, D: 2.7
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0183-0
  • Drawing View

Adapter, LLw, 1/4″, nat

  • Description Connector, Female Luer Lock – Tube Size: 1/4″
  • Dimension LLf, D: 1/4″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0188-0
  • Drawing View

Adapter, LLm, 3.0, tr

  • Description Connector, Male Luer Lock – Tube Size: 3.0
  • Dimension LLm, D: 3.0
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0189-0
  • Drawing View

Adapter, LLm, 2.5, tr

  • Description Connector, Male Luer Lock – Tube Size: 2.5
  • Dimension LLm, D: 2.5
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0190-0
  • Drawing View

Adapter, LLm, ID 3.0, tr

  • Description Connector, Male Luer Lock – Tube Size: 3.0
  • Dimension LLm, D: 3.0
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0191-0
  • Drawing View

Adapter, LLw, 2.3, tr

  • Description Connector, Female Luer Lock – Tube Size: 2.3
  • Dimension LLf, D: 2.3
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0192-0
  • Drawing View

Adapter, LLw, 1.8, tr

  • Description Connector, Female Luer Lock – Tube Size: 1.8
  • Dimension LLf, D: 1.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0193-0
  • Drawing View

Adapter, LLw, 2, tr, #65249

  • Description Connector, Female Luer Lock – Tube Size: 2
  • Dimension LLf, D: 2
  • Colour transparent
  • Material ABS
  • Item CodeQTM 1-0195-0
  • Drawing View

Adapter, LLm, 3.2, tr, #65114

  • Description Connector, Male Luer Lock – Tube Size: 3.2
  • Dimension LLm, D: 3.2
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0196-0
  • Drawing View

Adapter, LLw, 2.8, tr, #65240

  • Description Connector, Female Luer Lock – Tube Size: 2.8, vented
  • Dimension LLf, D: 2.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0197-0
  • Drawing View

Adapter, HD, LLm, rot, 3.0, tr, #12682

  • Description High Pressure Connector, Male Luer Lock, rotating – Tube Size: 3.0
  • Dimension LLm, D: 3.0
  • Colour transparent
  • Material PC, SIK
  • Item Code QTM 1-0201-0
  • Drawing View

Adapter HD, LLm, rot, 3.65, tr

  • Description High Pressure Connector, Male Luer Lock, rotating – Tube Size: 3.65
  • Dimension LLm, D: 3.65
  • Colour transparent
  • Material PE
  • Item Code QTM 1-0203-0
  • Drawing View

Adapter, LLm, 3.5, tr

  • Description Connector, Male Luer Lock – Tube Size: 3.5
  • Dimension LLm, D: 3.5
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0204-0
  • Drawing View

Adapter, LLm, 3.5, tr, ebeam

  • Description Connector, Male Luer Lock – Tube Size: 3.5 ebeam-, gamma-sterilisable
  • Dimension LLm, D: 3.5
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0204-1
  • Drawing View

Adapter, LLw, 1.5, bl, #11218

  • Description Connector, Female Luer Lock – Tube Size: 1.5
  • Dimension LLf, D: 1.5
  • Colour blue
  • Material PC
  • Item Code QTM 1-0208-0
  • Drawing View

Adapter, LLw, 1.7, nat, #11202

  • Description Connector, Female Luer Lock – Tube Size: 1.7
  • Dimension LLf, D: 1.7
  • Colour natural
  • Material PVC
  • Item Code QTM 1-0209-0
  • Drawing View

Adapter, LLw, 3.2, tr, #65257

  • Description Connector, Female Luer Lock – Tube Size: 3.2
  • Dimension LLf, D: 3.2
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0212-0
  • Drawing View

Adapter, LLw, 1/32″, tr, #11733

  • Description Connector, Female Luer Lock – Tube Size: 1/32″, gamma-stable
  • Dimension LLf, D: 1/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0215-0
  • Drawing View

Adapter, LLw, 1/32″, tr

  • Description Connector, Female Luer Lock – Tube Size: 1/32″
  • Dimension LLf, D: 1/32″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0215-1
  • Drawing View

Adapter, LLw, 5.0, tr

  • Description Connector, Female Luer Lock – Tube Size: 5.0
  • Dimension LLf, D: 5.0
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0224-0
  • Drawing View

Adapter, LLw, 1/8″, nat

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0225-0
  • Drawing View

Adapter, LLw, 3/32″, nat

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour natural
  • Material PVDF
  • Item Code QTM 1-0229-0
  • Drawing View

Adapter, LLw, 3/32″, tr

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0229-1
  • Drawing View

Adapter, LLm, 1/16″, tr, #89343

  • Description Connector, Male Luer Lock – Tube Size: 1/16″
  • Dimension LLm, D: 1/16″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0233-0
  • Drawing View

Adapter, LLm, 1/16″, tr, #89337

  • Description Connector, Male Luer Lock – Tube Size: 1/16″
  • Dimension LLm, D: 1/16″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0233-1
  • Drawing View

Adapter, LLw, 5/32″, tr, #11550

  • Description Connector, Female Luer Lock – Tube Size: 5/32″
  • Dimension LLf, D: 5/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0234-0
  • Drawing View

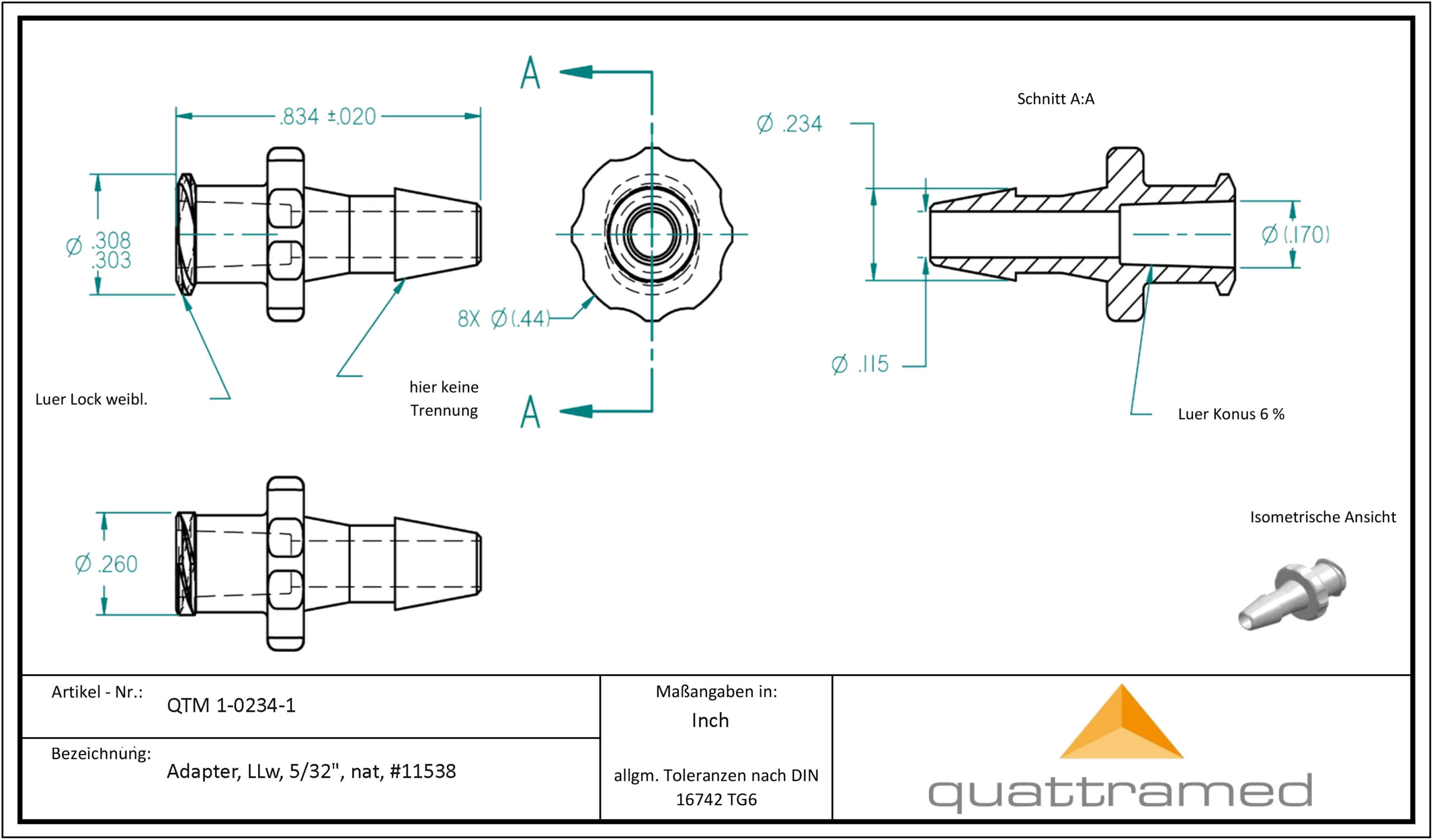

Adapter, LLw, 5/32″, nat, #11538

  • Description Connector, Female Luer Lock – Tube Size: 5/32″
  • Dimension LLf, D: 5/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0234-1
  • Drawing View

Stufenadapter, 6.8, ws, #41420

  • Description Stepped Connector, Enteral – Tube Size: 6.8
  • Dimension D: 6.8
  • Colour white
  • Material ABS
  • Item Code QTM 1-0240-0
  • Drawing View

Adapter, LLm, 3/32″, nat

  • Description Connector Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0241-0
  • Drawing View

Adapter, LLm, 3/32″, nat

  • Description Connector Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour natural
  • Material PVDF
  • Item Code QTM 1-0241-1
  • Drawing View

Adapter, LLm, 3/32″, tr

  • Description Connector Male Luer Lock – Tube Size: 3/32″
  • Dimension LLm, D: 3/32″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0241-2
  • Drawing View

Adapter, LLw, 3/32″, nat

  • Description Connector, Female Luer Lock – Tube Size: 3/32″
  • Dimension LLf, D: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0242-0
  • Drawing View

Adapter, LLw, LLw, nat, #17642

  • Description Connector, Female Luer Lock, Female Luer Lock
  • Dimension LLf, LLf
  • Colour natural
  • Material PE
  • Item Code QTM 1-0245-0
  • Drawing View

Adapter, LLw, 5.3, tr, #65251

  • Description Connector, Female Luer Lock – Tube Size: 5.3
  • Dimension LLf, D: 5.3
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0247-0
  • Drawing View

Adapter, Lm, 5/32″, nat

  • Description Connector, Male Luer – Tube Size: 5/32″
  • Dimension Lm, D: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0250-0
  • Drawing View

Mutter f. Lm, nat, #11957

  • Description Nut for Male Luer
  • Dimension Lm
  • Colour natural
  • Material PP
  • Item Code QTM 1-0251-0
  • Drawing View

Mutter f. Lm, ws, #11958

  • Description Nut for Male Luer
  • Dimension Lm
  • Colour white
  • Material PA
  • Item Code QTM 1-0251-1
  • Drawing View

Mutter f. Lm, sw, #11959

  • Description Nut for Male Luer
  • Dimension Lm
  • Colour black
  • Material PA
  • Item Code QTM 1-0251-2
  • Drawing View

Mutter f. Lm, tr, #11955

  • Description Nut for Male Luer
  • Dimension Lm
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0251-3
  • Drawing View

Adapter, LLw, 4.1, tr, #65235

  • Description Connector, Female Luer Lock – Tube Size: 4.1
  • Dimension LLf, D: 4.1
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0488-0
  • Drawing View

Adapter, LLw, 1.6, tr, #11203

  • Description Connector, Female Luer Lock – Tube Size: 1.6
  • Dimension LLf, D: 1.6
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0489-0
  • Drawing View

Adapter, LLw, 1/4″, tr, #11566

  • Description Connector, Female Luer Lock – Tube Size: 1/4″
  • Dimension LLf, D: 1/4″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0255-0
  • Drawing View

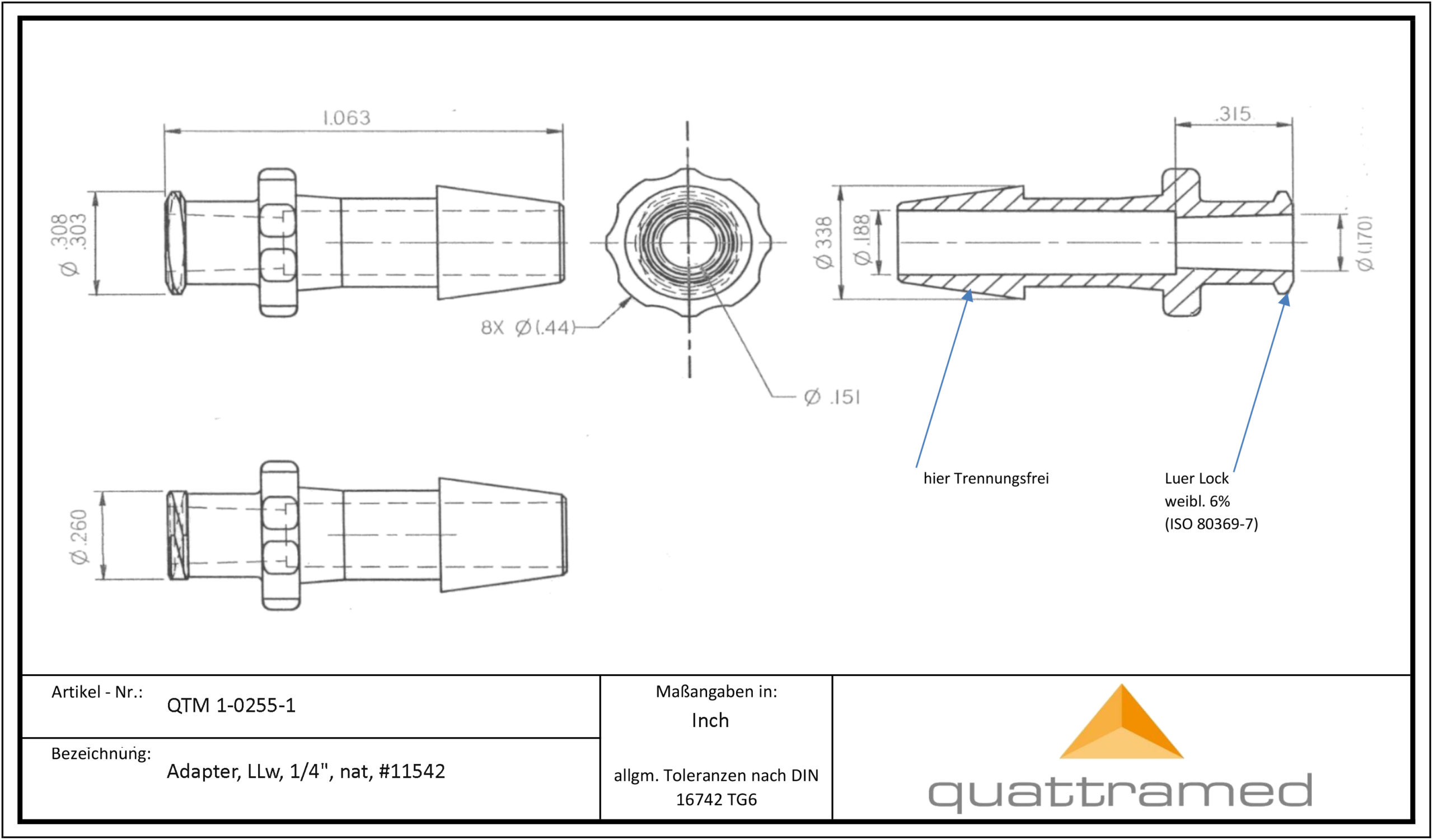

Adapter, LLw, 1/4″, nat, #11542

  • Description Connector, Female Luer Lock – Tube Size: 1/4″
  • Dimension LLf, D: 1/4″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0255-1
  • Drawing View

Adapter, LLw, 1/4″, nat, #11395

  • Description Connector, Female Luer Lock – Tube Size: 1/4″
  • Dimension LLf, D: 1/4″
  • Colour natural
  • Material PVDF
  • Item Code QTM 1-0255-2
  • Drawing View

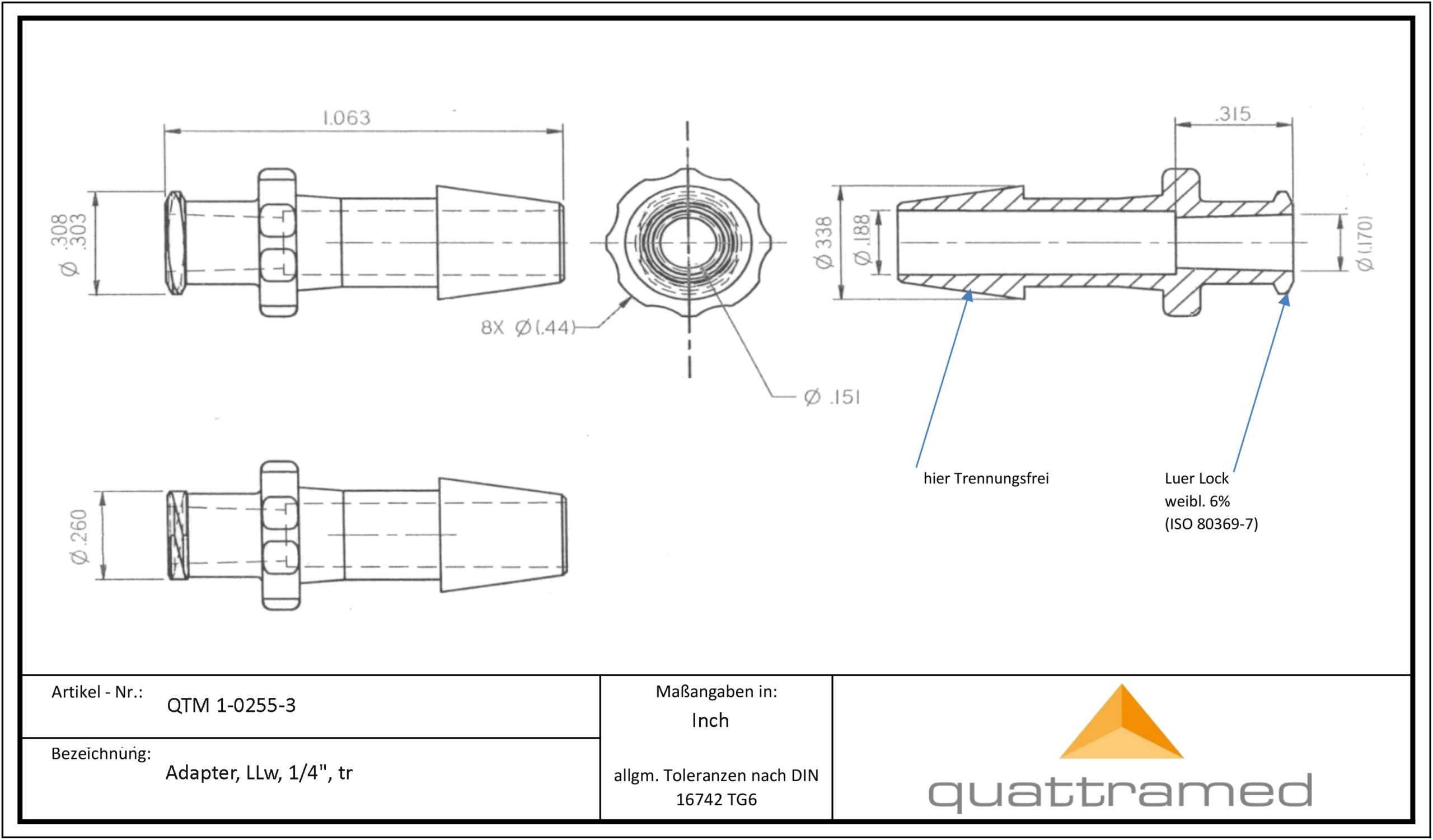

Adapter, LLw, 1/4″, tr

  • Description Connector, Female Luer Lock – Tube Size: 1/4″
  • Dimension LLf, D: 1/4″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0255-3
  • Drawing View

Adapter, LLw, 1/8″, tr, #11729

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0256-0
  • Drawing View

Adapter, LLw, 1/8″, tr, #11732

  • Description Connector, Female Luer Lock – Tube Size: 1/8″
  • Dimension LLf, D: 1/8″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0256-1
  • Drawing View

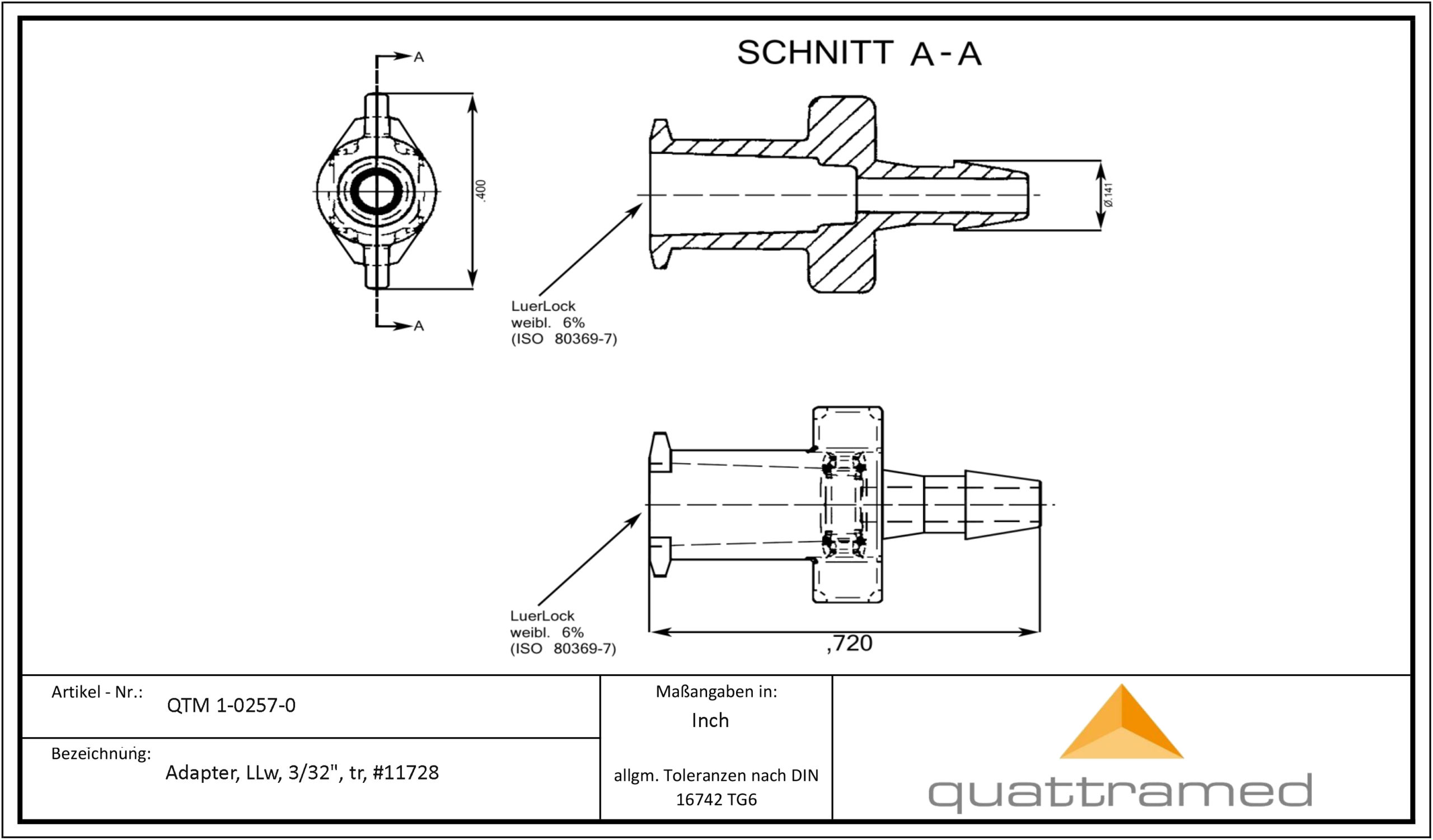

Adapter, LLw, 3/32″, tr, #11728

  • Description Connector, Female Luer Lock – Tube Size 3/32″
  • Dimension LLm, D: 3/32″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0257-0
  • Drawing View

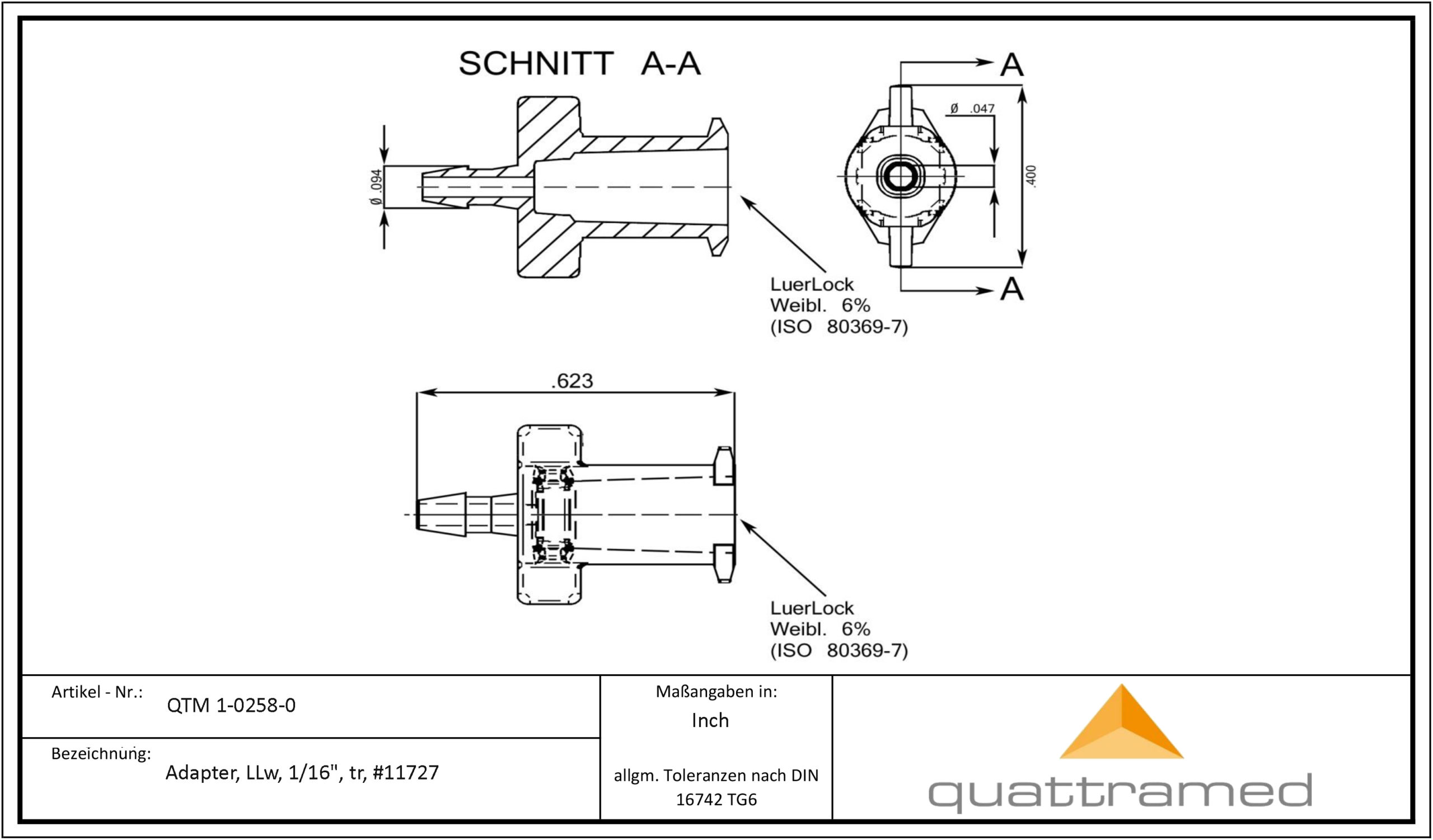

Adapter, LLw, 1/16″, tr, #11727

  • Description Connector, Female Luer Lock – Tube Size: 1/16″
  • Dimension LLf, D: 1/16″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0258-0
  • Drawing View

Adapter, Lm, 3/32″, tr, #11662

  • Description Connector, Male Luer – Tube Size: 3/32″
  • Dimension Lm, D: 3/32″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0259-0
  • Drawing View

Adapter, Lm, 1/8″, tr, #11661

  • Description Connector, Male Luer – Tube Size: 1/8″
  • Dimension Lm, D: 1/8″
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0260-0
  • Drawing View

Adapter, Lm, 3.5, tr, #71288

  • Description Connector, Male Luer – Tube Size: 3.5
  • Dimension Lm, D: 3.5
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0262-0
  • Drawing View

Adapter, LLm, 6.4, tr, #11725

  • Description Connector, Male Luer Lock – Tube Size: 6.4
  • Dimension LLm, D: 6.4
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0263-0
  • Drawing View

Adapter, LLw, LLw, tr, #13136

  • Description Connector, Female Luer Lock, Female Luer Lock
  • Dimension LLf, LLf
  • Colourtransparent
  • Material ABS
  • Item Code QTM 1-0269-0
  • Drawing View

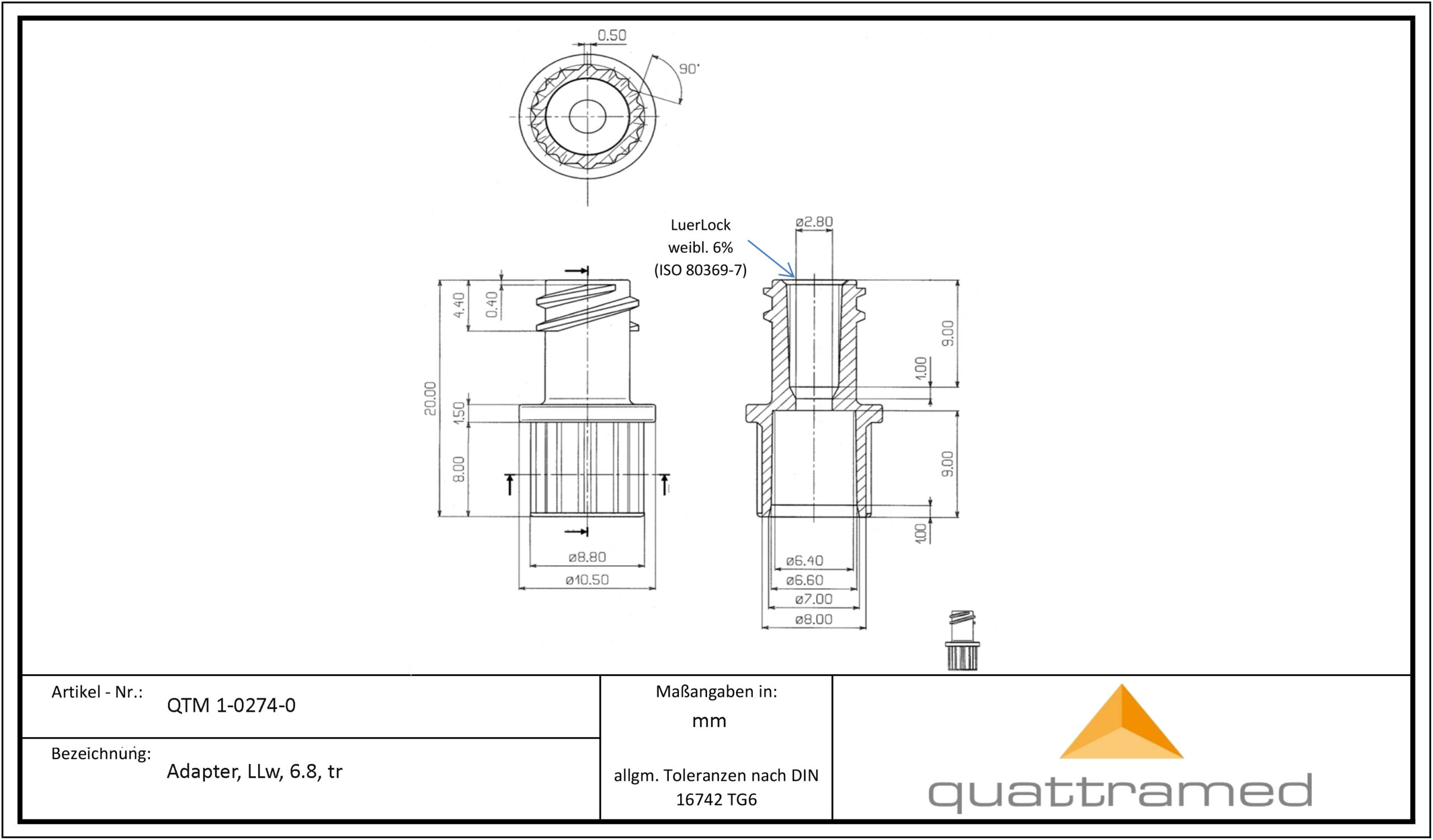

Adapter, LLw, 6.8, tr

  • Description Connector, Female Luer Lock – Tube Size: 6.8
  • Dimension LLf, D: 6.8
  • Colour transparent
  • Material PVC
  • Item CodeQTM 1-0274-0
  • Drawing View

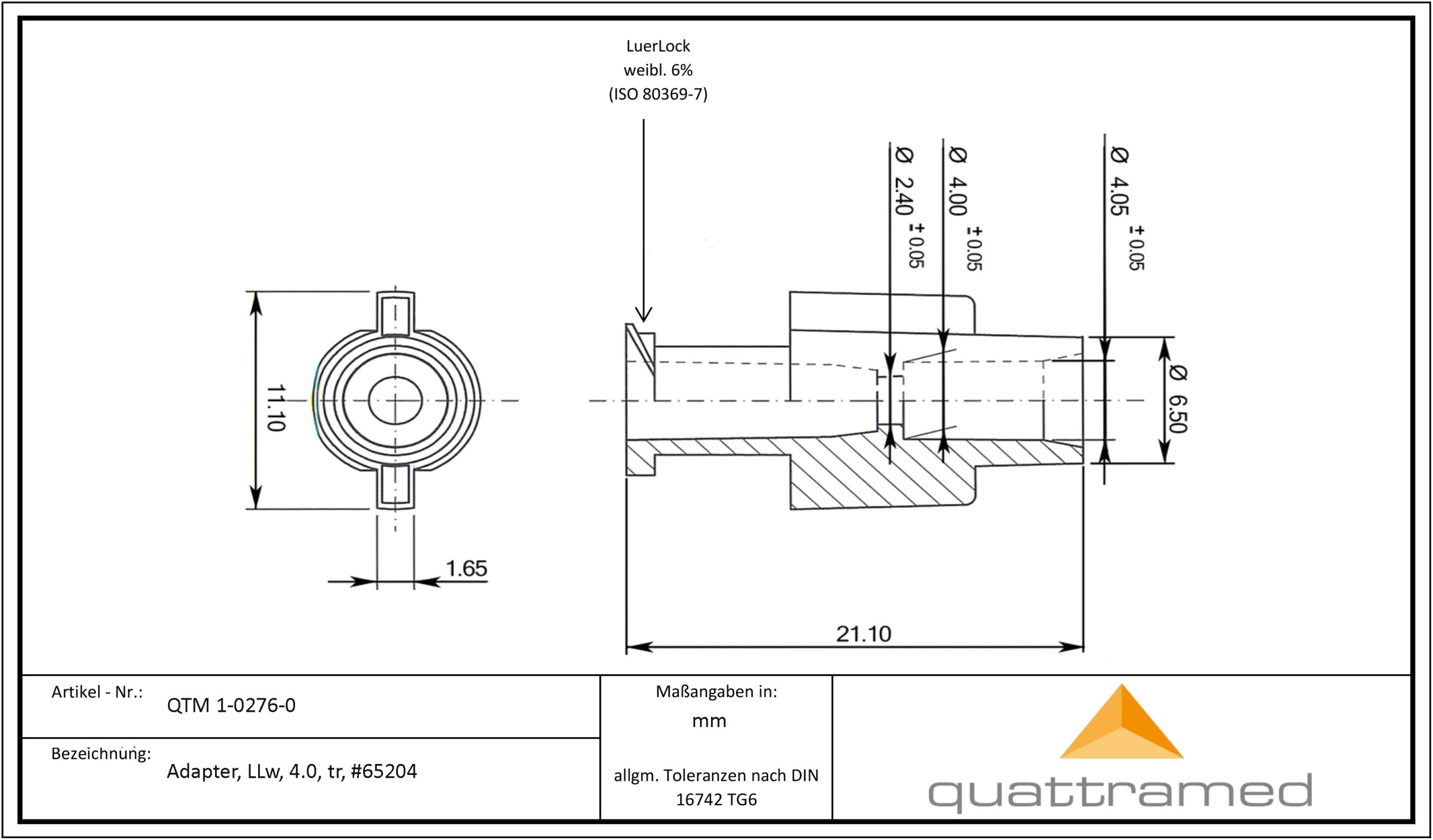

Adapter, LLw, 4.0, tr, #65204

  • Description Connector, Female Luer Lock – Tube Size: 4.0
  • Dimension LLf, D: 4.0
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0276-0
  • Drawing View

Adapter, LLw, 5.7, tr

  • Description Connector, Female Luer Lock – Tube Size 5.7
  • Dimension LLf, D: 5.7
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0277-0
  • Drawing View

Adapter, Lm, Lm, nat

  • Description Connector Male Luer, Male Luer
  • Dimension Lm, Lm
  • Colour natural
  • Material ABS
  • Item Code QTM 1-0281-0
  • Drawing View

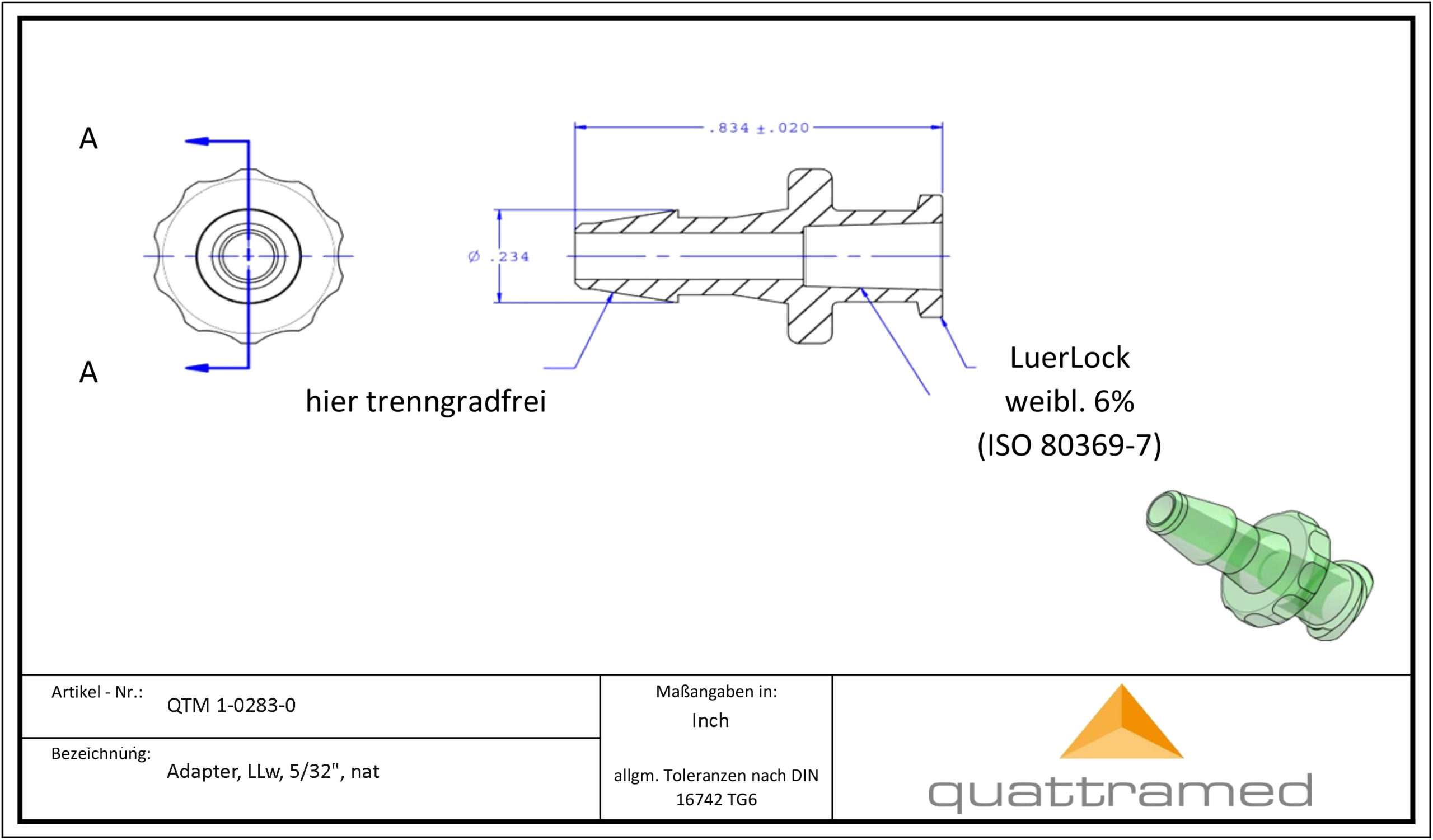

Adapter, LLw, 5/32″, nat

  • Description Connector, Female Luer Lock – Tube Size: 5/32″
  • Dimension LLf, D: 5/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0283-0
  • Drawing View

Adapter, Lm, 3/16″, nat

  • Description Connector, Male Luer – Tube Size: 3/16″
  • Dimension Lm, D: 3/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0289-0
  • Drawing View

Adapter, LLw, 3/16″, nat

  • Description Connector, Female Luer Lock – Tube Size 3/16″
  • Dimension LLf, D: 3/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0290-0
  • Drawing Ansicht

Adapter, LLm, OD 6.35, tr

  • Description Connector, Male Luer Lock – Tube Size outside: 6.35
  • Dimension LLm, Da: 6.35
  • Colour transparent
  • Material ABS, PP
  • Item Code QTM 1-0292-0
  • Drawing View

Adapter, LLm, OD 6.35, tr

  • Description Connector Male Luer Lock – Tube Size outside: 6.35
  • Dimension LLm, Da: 6.35
  • Colour transparent
  • Material ABS, ABS
  • Item Code QTM 1-0292-1
  • Drawing View

Adapter, LLm, 4.7, tr/ws

  • Description Connector, Male Luer Lock – Tube Size: 4.7
  • Dimension LLm, D: 4.7
  • Colour transparent-white
  • Material ABS, PA
  • Item Code QTM 1-0307-0
  • Drawing View

Adapter, LLw, 2.1, tr, #65209

  • Description Connector, Female Luer Lock – Tube Size 2.1
  • Dimension LLf, D: 2.1
  • Colour transparent
  • Material PCTG
  • Item Code QTM 1-0309-0
  • Drawing View

Mutter f. NRm, tr

  • Description Nut for Male Neuraxial, 80369-6 (Connector: QTM 1-0313-0)
  • Dimension NRm
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0312-0
  • Drawing View

Adapter NRm, 4.1, tr

  • Description Connector, Male Neuraxial – Tube Size: 4.1, 80369-6 (Nut: QTM1-0312-0)
  • Dimension NRm, D: 4.1
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0313-0
  • Drawing View

Adapter NRLw, 4.1, tr

  • Description Connector, Female Neuraxial Lock – tube Size: 4.1, 80369-6
  • Dimension NRLf, D: 4.1
  • Colour transparent
  • Material PVC
  • Item CodeQTM 1-0314-0
  • Drawing View

Adapter NRLm, 4.1, tr

  • Description Connector, Male Neuraxial Lock – Tube Size: 4.1, 80369-6
  • Dimension NRLm, D: 4.1
  • Colour transparent
  • Material PVC, ABS
  • Item Code QTM 1-0315-0
  • Drawing View

Adapter, LLm, 3.5, tr, #65116

  • Description Connector, Male Luer Lock – Tube Size: 3.5
  • Dimension LLm, D: 3.5
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0317-0
  • Drawing View

Adapter, LLw, 1.8, tr, ỹ

  • Description Connector, Female Luer Lock – Tube Size: 1.8
  • Dimension LLf, D: 1.8
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0318-0
  • Drawing View

Adapter HLM, 1/4″, 1/4″, 2LLw, tr

  • Description Connector for ECC, E: 1/4″, O: 1/4″, 2 Female Luer Lock (Heart-Lung Machine)
  • Dimension E: 1/4″, A: 1/4″, 2 LLf
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0322-0
  • Drawing View

Adapter, LLw, OD 5.0 / ID 3.5, tr

  • Description Connector, Female Luer Lock – Tube Size insode: 3.5 or outside: 5.0
  • Dimension LLf, Di: 3.5, Da: 5.0
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0333-0
  • Drawing View

Adapter, LLm, 4.1, rt

  • Description Connector, Male Luer Lock – Tube Size: 4.1
  • Dimension LLm, D: 4.1
  • Colour red
  • Material ABS
  • Item Code QTM 1-0341-0
  • Drawing View

Adapter, LLm, 9.54, tr

  • Description Connector, Male Luer Lock – Tube Size: 9.54
  • Dimension LLm, D: 9.54
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0345-0
  • Drawing View

Adapter, LLm, 9.54, tr, noDOP

  • Description Connector, Male Luer Lock – Tube Size: 9.54, phthalate-free
  • Dimension LLm, D: 9.54
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0345-1
  • Drawing View

Adapter, LLm, 2.5, tr

  • Description Connector, Male Luer Lock – Tube Size: 2.5
  • Dimension LLm, D: 2.5
  • Colour transparent
  • Material ABS, PP
  • Item Code QTM 1-0354-0
  • Drawing View

Adapter, HD, LLm, 4.8, tr, 1.200 psi

  • Description High Pressure Connector, Male Luer Lock – Tube Size: 4.8, 1200 psi
  • Dimension LLm, D: 4.8
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0355-0
  • Drawing View

Adapter, LLw, 1/16″, Gerätedurchführung, nat, #PMLF21

  • Description Connector, Device feed-through, Female Luer Lock – Tube Size: 1/16″, Thread: 1/4 UNF, for PM-Line-Colder
  • Dimension LLf, D: 1/16″
  • Colournatural
  • Material PP
  • Item Code QTM 1-0356-0
  • Drawing View
