Spikes

Stechdorn bel. m. Kappe bel., LLw, 3.0µ, ws/nat/bl

  • Description Vented spike with vented Cap, Female Luer lock, 3.0µ Filter
  • Dimension Female Luer Lock
  • Colour white, natural, blue
  • Material ABS, PCDF, PE, PP
  • Item Code QTM 1-0603-0
  • Drawing View

Stechdorn bel. mit Kappe bel., 4.8/4.1, 0.8µ, nat/ws

  • Description Vented Spike with vented Cap, Di: 4.8, Do: 4.1, 0.8µ
  • Dimension Do: 4.8; Di: 4.1
  • Colour natural/white
  • Material ABS, PE
  • Item Code QTM 1-0521-0
  • Drawing View

Spritze, 10ml, LLm, tr, #C1073

  • Description Syringe, 10ml, Male Luer Lock, centric
  • Dimension LLm, 10ml
  • Colour transparent
  • Material ABS, PC, SIK
  • Item Code QTM 1-0032-0
  • Drawing View

Spritze, 60ml, LLm, tr, #C1097

  • Description Syringe, 60ml, Male Luer Lock, centric
  • Dimension LLm, 60ml
  • Colour transparent
  • Material PC, ABS, SIK
  • Item Code QTM 1-0035-0
  • Drawing View

TK 30, 6.8, 6.8, tr

  • Description Drip Chamber, D: 30, E: 6.8, O: 6.8
  • Dimension D: 30, E: 6.8, A: 6.8
  • Colour transparent
  • Material n/a
  • Item Code QTM 1-0051-0
  • Drawing n/a

Stechdorn, LLw, ws, #23210

  • Description Spike, Female Luer Lock
  • Dimension LLf
  • Colour white
  • Material ABS
  • Item Code QTM 1-0060-0
  • Drawing View

Stechdorn, TK-OT, 16 , bel, ws

  • Description Spike for Drip Chamber, D: 16, vented, without Filter
  • Dimension D: 16
  • Colour white
  • Material ABS
  • Item Code QTM 1-0070-0
  • Drawing View

TK-UT, 20, tr, PP, f. QTM 1-0070-0

  • Description Drip Chamber, Lower Part, D: 20, for QTM 1-0070-0
  • Dimension D: 20
  • Colour transparent
  • Material PP
  • Item Code QTM 1-0073-0
  • Drawing View

TK-UT, 20, 6.5, tr

  • Description Drip Chamber, Lower Part, Diameter: 20, Outlet: 6.5
  • Dimension D: 20, O: 6.5
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0074-0
  • Drawing View

Stechdorn mit Kappe, transfer, LLw, bel., ws, #23235

  • Description Mini-Spike with Caps, Female Luer Lock, vented
  • Dimension LLf
  • Colour white
  • Material ABS, PE, PMMA, PA
  • Item Code QTM 1-0087-0
  • Drawing View

Stechdorn mit Kappen, transfer, LLw, bel., ws, o. Filter

  • Description Mini-Spike with Cap, Female Luer Lock, vented, without Filter
  • Dimension LLf
  • Colour white
  • Material ABS, PE
  • Item Code QTM 1-0087-1
  • Drawing View

TK-OT 20, 6.5, 5.0, tr

  • Description Drip Chamber, Top Part, for chamber D: 20, Port1: 6.5, Port2: 5.0
  • Dimension D: 20, P1: 6.5, P2: 5.0
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0089-0
  • Drawing View

Stechdorn, 5.4 OD, ws

  • Description Spike – Tube Size outside: 5.4
  • Dimension Da: 5.4
  • Colour white
  • Material ABS
  • Item Code QTM 1-0114-0
  • Drawing View

Stechdorn, 5.4 OD, bl

  • Description Spike – Tube Size outside: 5.4, Spike blue (same Dimensions like QTM 1-0114-0)
  • Dimension Da: 5.4
  • Colour blue
  • Material ABS
  • Item Code QTM 1-0114-1
  • Drawing View

Stechdorn, med, transfer, LLw, bel, ws, #23229

  • Description Spark, medium with Female Luer Lock, vented
  • Dimension LLf
  • Colour white
  • Material ABS, PE
  • Item Code QTM 1-0125-0
  • Drawing View

Stechdorn, 4.7, ws, #23206

  • Description Spike – Tube Size: 4.7
  • Dimension D: 4.7
  • Colour white
  • Material ABS
  • Item Code QTM 1-0136-0
  • Drawing View

Stechdorn, HF, 6.4, ws, #23253

  • Description Spike, High Flow – Tube Size: 6.4
  • Dimension D: 6.4
  • Colour white
  • Material ABS
  • Item Code QTM 1-0173-0
  • Drawing View

TK-OT, 6.8, tr, #43102

  • Description Drip Chamber, Top Part – Tube Size: 6.8
  • Dimension D: 6.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0174-0
  • Drawing View

TK-UT, 30, 6.8, tr, #43204

  • Description Drip Chamber, Lower Part, D: 30, Outlet: 6.8
  • Dimension D: 30, Di: 6.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0176-0
  • Drawing View

Stechdorn bel. mit Kappe bel., 6.1/3.5, 0.8µ, nat/ws

  • Description Spike vented with Cap vented – Tube Size outside: 6.5 or inside: 3.5, 0.8µ
  • Dimension Do: 6.5, Di: 3.5
  • Colour white
  • Material ABS, PE, PMMA
  • Item Code QTM 1-0187-0
  • Drawing View

TK 18, 4.1, 4.1, 15µ, 80, ws/tr

  • Description Drip Chamber, D: 18, E: 4.1, O: 4.1, Filter: 15µ
  • Dimension D: 18, E: 4.1, A: 4.1
  • Colour white-transparent
  • Material ABS, PVC, PA
  • Item Code QTM 1-0227-0
  • Drawing View

Stechdorn bel. mit Kappe bel., Lw/5.1, 0.8µ, ws/nat

  • Description Vented Spike with vented Cap, Female Luer or Tube Size: 5.1, 0.8µ
  • Dimension Lf/Do: 5.1, 0.8µ
  • Colour white-natural
  • Material ABS, PE, PP, PVDF
  • Item Code QTM 1-0492-0
  • Drawing View

Stechdorn, groß, LLw, bel, ohne Filter, ws/nat

  • Description Spike, big, Female Luer Lock, vented, without Filter
  • Dimension LLf
  • Colour white, natural
  • Material ABS, PE
  • Item Code QTM 1-0266-0
  • Drawing View

Stechdorn, groß, LLw, bel, 3.0µ, ws

  • Description Spike, big, Female Luer Lock, vented, 3.0µ
  • Dimension LLf, 3.0µ
  • Colour white
  • Material ABS, PE, PMMA, PA
  • Item Code QTM 1-0266-1
  • Drawing View

Stechdorn, groß, LLw, bel, ohne Filter, ws/nat, gamma

  • Description Spike, big, Female Luer Lock, vented, without Filter, gamma-sterilisable
  • Dimension LLf
  • Colourwhite-natural
  • Material ABS, PP
  • Item Code QTM 1-0266-2
  • Drawing View

Stechdorn mit Kappe, LLw, ws/ws

  • Description Spike with Cap, Female Luer Lock
  • Dimension LLf
  • Colour white
  • Material ABS, PE
  • Item Code QTM 1-0271-0
  • Drawing View

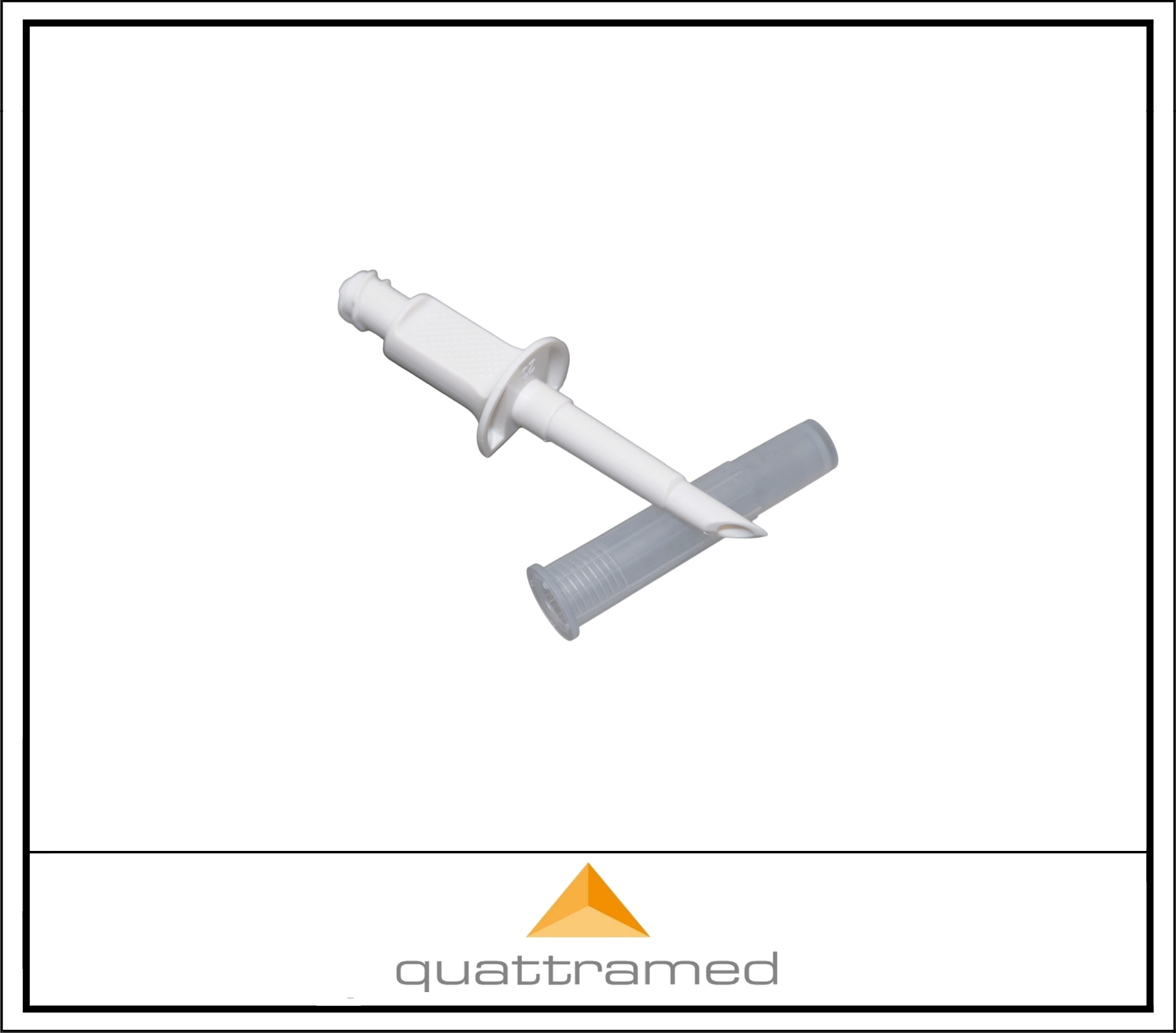

Stechdorn mit Kappe, LLw, ws/tr

  • Description Spike with Cap, Female Luer Lock
  • Dimension LLf
  • Colour white-transparent
  • Material ABS, PE
  • Item Code QTM 1-0271-1
  • Drawing View

Stechdorn m. Kappe, LLw, bel., ws/tr

  • Description Spike with Cap, Female Luer Lock, vented
  • Dimension LLf
  • Colour white-transparent
  • Material ABS, PE
  • Item Code QTM 1-0284-0
  • Drawing View

Stechdorn m. Kappe, LLw, bel, ws

  • Description Spike with Cap, Female Luer Lock, vented
  • Dimension LLf
  • Colour white
  • Material ABS, PE, PMMA
  • Item Code QTM 1-0308-0
  • Drawing View

Stechdorn mit Kappe, LLw, ws, #23264

  • Description Spike with Cap, Female Luer Lock
  • Dimension LLf
  • Colour white
  • Material ABS, PE
  • Item Code QTM 1-0342-0
  • Drawing View

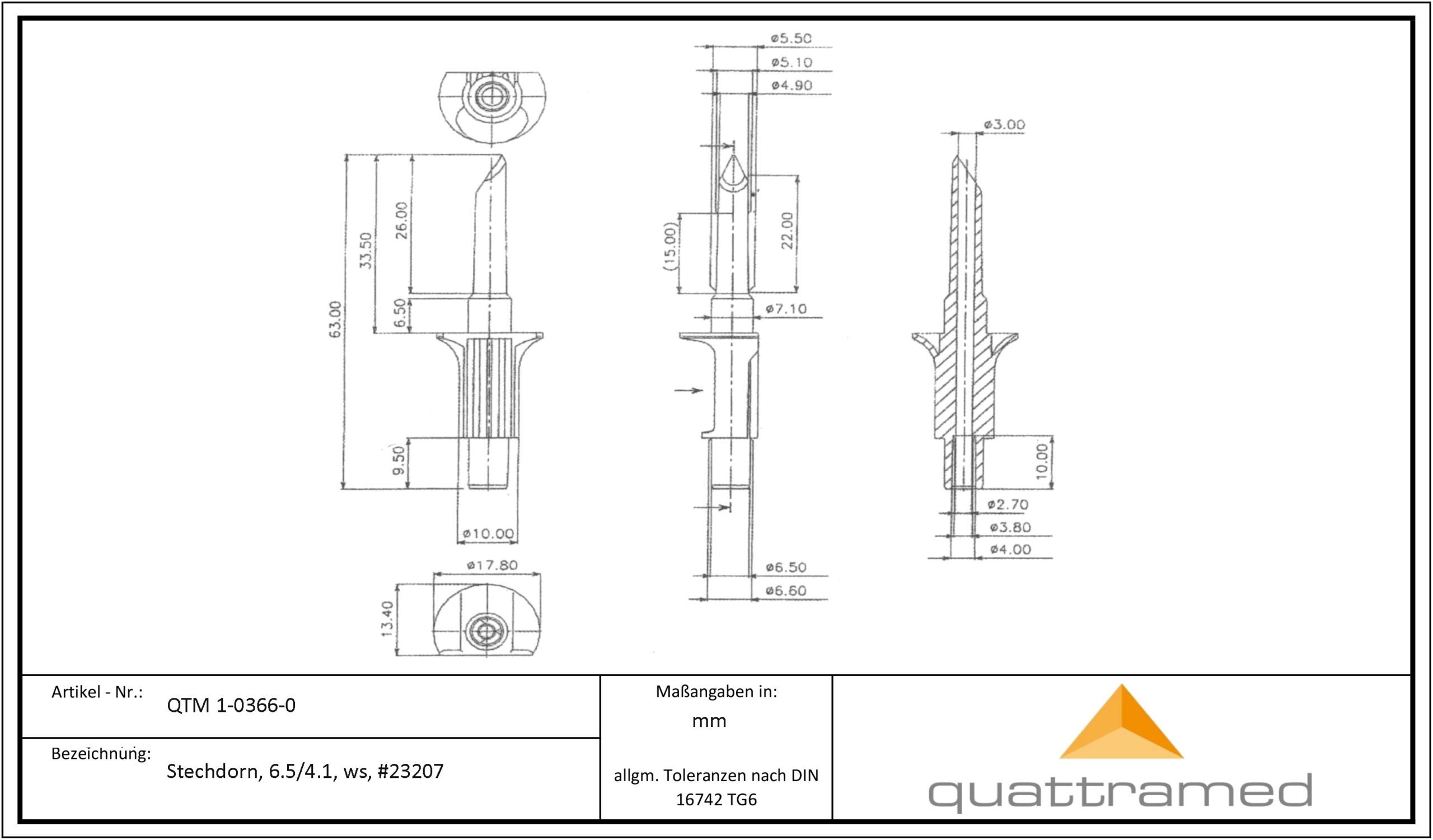

Stechdorn, 6.5/4.1, ws, #23207

  • Description Spike – Tube Size inside: 4.1 or outside: 6.5
  • Dimension Di: 4.1; Da: 6.5
  • Colour white
  • Material ABS
  • Item Code QTM 1-0366-0
  • Drawing View

TK 19 “transfusion”, 4.1, 4.1, 200µ, tr

  • Description Drip Chamber, D: 19, E: 4.1, O: 4.1, Filter: 200µ
  • Dimension D:19, E: 4.1, A: 4.1
  • Colour transparent
  • Material PVC, PP, PA
  • Item Code QTM 1-0403-0
  • Drawing View
