Other adapters

Adapter, 1/4″, 1/4″, tr

  • Description Connector, E: 1/4″, O: 1/4″
  • Dimension E: 1/4″, O: 1/4″
  • Colour transparent
  • Material PP
  • Item Code QTM 1-0604-0
  • Drawing View

Adapter, SKd MicroCNX, 1/8″, ws/bl

  • Description Connector, diverse Coupling Body – Tube Size: 1/8″, #CNX17002HT
  • Dimension D: 1/8″
  • Colour white, blue
  • Material PC, Sik, PP, PES
  • Item Code QTM 1-0598-0
  • Drawing View

Adapter, 6.8, 9.54, gn

  • Description Pump Connector, E: 6.8, O: 9.54
  • Dimension E: 6.8, O: 9.54
  • Colour green
  • Material PVC
  • Item Code QTM 1-0550-1
  • Drawing View

Adapter, 6.8, 9.54, nat, #12672

  • Description Pump Connector, E: 6.8, O: 9.54
  • Dimension E: 6.8, O: 9.54
  • Colour natural
  • Material PVC
  • Item Code QTM 1-0550-0
  • Drawing View

Beutelport Twist-Off, 7.1/5.1, 1teilig, nat, #65853

  • Description Bag Port, Twist-Off, Do: 7.1, Di: 5.1, one-piece
  • Dimension Da: 7.1, Di: 5.1
  • Colour natural
  • Material EVA
  • Item Code QTM 1-0575-0
  • Drawing View

Feder, Druck, DA8.87, d0.75, Lo40

  • Description Pressure Spring, Do: 8.87, d: 0.75, L: 40
  • Dimension Do: 8.87, d: 0.75, L: 40
  • Colour silver
  • Material SS
  • Item Code QTM 1-0541-0
  • Drawing View

Indikatorklebeband, EO, 19×50

  • Description Indicator tape with EO indicator, 12 rolls with 50m each
  • Dimension 12 rolls á 50 m, 19mm width
  • Colour white
  • Material Paper
  • Item Code QTM 1-0558-0
  • Drawing View

Sicherheitsverbinder Lm 6.4, tr

  • Description Safety Connector Male Lock – Tube Size 6.4
  • Dimension Lm, D: 6.4
  • Farbe transparent
  • Material PMMA
  • Item Code QTM 1-0514-0
  • Drawing View

Sicherheitsverbinder Lw, 6.4, tr

  • Description Safety connector female Lock – Tube Size: 6.4
  • Dimension Lf, D: 6.4
  • Colour transparent
  • Material PMMA
  • Item Code QTM 1-0516-0
  • Drawing View

Vial Adapter, 20mm, tr

  • Description Vial Connector, D: 20
  • Dimension D: 20
  • Colour transparent
  • Material PC, SIK
  • Item Code n/a
  • Drawing View

Vial Adapter, 13mm, tr

  • Description Vial Connector, D: 13
  • Dimension D: 13
  • Colour transparent
  • Material PC, SIK
  • Item Code n/a
  • Drawing View

Drainadapter, twin, 1/4″, tr

  • Description Reinforced Y-Connector, Drainage – Tube Size: 1/4″
  • Dimension D: 1/4″
  • Colour transparent
  • Material PVC (Plastisol)
  • Item Code QTM 1-0021-0
  • Drawing View

Drainadapter, twin, 1/4″, tr, #81460

  • Description Reinforced Y-Connector, Drainage – Tube Size: 1/4″
  • Dimension D: 1/4″
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0021-1
  • Drawing View

Drainadapter, twin, 1/4″, tr, #81460

  • Description Reinforced Y-Connector, Drainage – Tube Size: 1/4″
  • Dimension D: 1/4″
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0021-2
  • Drawing View

Ernährungsverbinder, 1/4″-1/2″, 9.8 , ws

  • Description Nutritional Connector, D: 1/2″-1/4″ – Tube Size: 9.8 (Cap: QTM 1-0023-0)
  • Dimension D: 1/2″-1/4″, D: 9.8
  • Colour white
  • Material PVC
  • Item Code QTM 1-0023-0
  • Drawing View

Stufenadapter, 4.1, ws, #41414

  • Description Stepped Connector, D: 4-10.2 – Tube Size: 4.1
  • Dimension D: 4-10, 4.1
  • Colour white
  • Material ABS
  • Item Code QTM 1-0037-0
  • Drawing View

Quadrupel Adapter, 4.1, tr

  • Description Tube Connector, quadrupel – Tube Size: 5x 4.1
  • Dimension D: 5x 4.1
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0067-0
  • Drawing View

Adapter, LBw, 7.1 , ws, #89312

  • Description Connector, Large Bore Female – Tube Size: 7.1
  • Dimension LBf, D: 7.1
  • Colour white
  • Material ABS
  • Item Code QTM 1-0068-0
  • Drawing n/a

Adapter, LBw, OD 8.0, ws, #98805

  • Description Connector, Large Bore Female – Tube Size outside: 8.0
  • Dimension LBf, Da: 8.0
  • Colour white
  • Material ABS
  • Item Code QTM 1-0069-0
  • Drawing View

Ernährungsverbinder, LLm, ws, #41416

  • Description Nutritional Connector, Male Luer Lock, D: 4-6.1
  • Dimension LLm, D: 4-6.1
  • Colour white
  • Material ABS
  • Item Code QTM 1-0076-0
  • Drawing View

Nadeladapter mit Kappe, LLw, bl-transl., #23233

  • Description Needle Connector with Cap, Female Luer Lock, Plastic Cannula (No Punch Effect), Encapsulated for contact-free Removal
  • Dimension LLf
  • Colour blue-translucent
  • Material PC, PE
  • Item Code QTM 1-0086-0
  • Drawing View

Telleradapter 13, 6 , nat

  • Description Plate Connector, D: 13 – Tube Size: 6
  • Dimension D: 6
  • Colour natural
  • Material PVC
  • Item Code QTM 1-0091-0
  • Drawing View

Adapter Kegel, LLw, 5.5, tr

  • Description Cone Connector, Female Luer Lock – Tube Size: 5.5
  • Dimension D: 5.5, LLf
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0104-0
  • Drawing View

Adapter Kegel, 5.5, tr

  • Description Cone Connector, D: 5.5-8.4 – Tube Size: 5.5
  • Dimension D: 5.5-8.4, 5.5
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0105-0
  • Drawing View

Adapter, 1/8″, 1/8″, nat, #11690

  • Description Tube Connector, E: 1/8″, O: 1/8″
  • Dimension E: 1/8″, A: 1/8″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0108-0
  • Drawing View

Adapter, 1/8″, 1/8″, ws, #11689

  • Description Tube Connector, E: 1/8″, O: 1/8″
  • Dimension E: 1/8″, A: 1/8″
  • Colour white
  • Material ABS
  • Item Code QTM 1-0108-1
  • Drawing View

Adapter, 1/8″, 1/8″, tr, ɣ

  • Description Tube Connector, E: 1/8″, O: 1/8″, gamma-sterilisable
  • Dimension E: 1/8″, A: 1/8″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0108-2
  • Drawing View

Adapter, 3/32″, 3/32″, nat, #11688

  • Description Tube Connector, E: 3/32″, O: 3/32″
  • Dimension E: 3/32″, A: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0116-0
  • Drawing View

Adapter, 3/8″, 5/16″, tr, #17524

  • Description Tube Connector, E: 3/8″, O: 5/16″
  • Dimension E: 3/8″, A: 5/16″
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0124-0
  • Drawing View

Pumpadapter, 2.8, 3.85 , tr

  • Description Pump Connector, E: 2.8, O: 3.85
  • Dimension E: 2.8, A: 3.85
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0179-0
  • Drawing View

Adapter DUNIm, 6.8, tr

  • Description Male Dialysis – Tube Size: 6.8
  • Dimension DUNIm, D: 6.8
  • Colour transparent
  • Material ABS
  • Item Code QTM 1-0213-0
  • Drawing View

Adapter DUNIw, 6.8, tr, #91000

  • Description Female Dialysis – Tube Size: 6.8
  • Dimension DUNIf, D: 6.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0214-0
  • Drawing View

Triple Adapter, 4.1, 4.1, tr,#80154

  • Description Tube Connector, triple – Tube Size: 4x 4.1
  • Dimension D: 4x 4.1
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0220-0
  • Drawing View

Triple Adapter, 4.1, 4.1, tr

  • Description Tube Connector, triple – Tube Size: 4x 4.1
  • Dimension D: 4x 4.1
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0220-1
  • Drawing View

Feder, Druck, DA8.63, d0.63, Lo50

  • Description Pressure Spring, Do: 8.63, d: 0.63, L: 50
  • Dimension Do: 8.63, d: 0.63, L: 50
  • Colour silver
  • Material SS
  • Item Code 1-0497-0
  • Drawing View

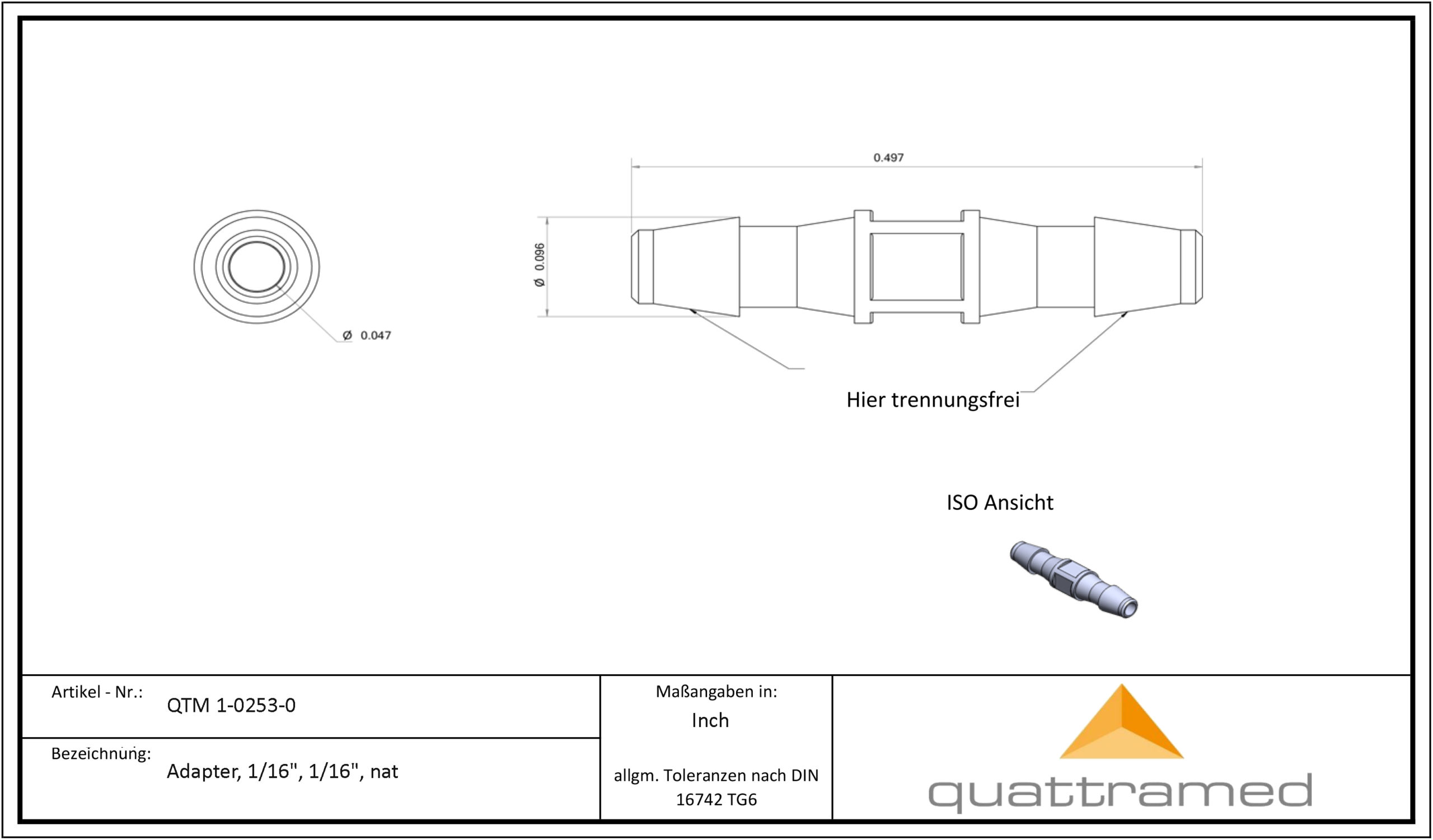

Adapter, 1/16″, 1/16″, nat

  • Description Tube Connector, E: 1/16″, O: 1/16″
  • Dimension E: 1/16″, A: 1/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0253-0
  • Drawing Ansicht

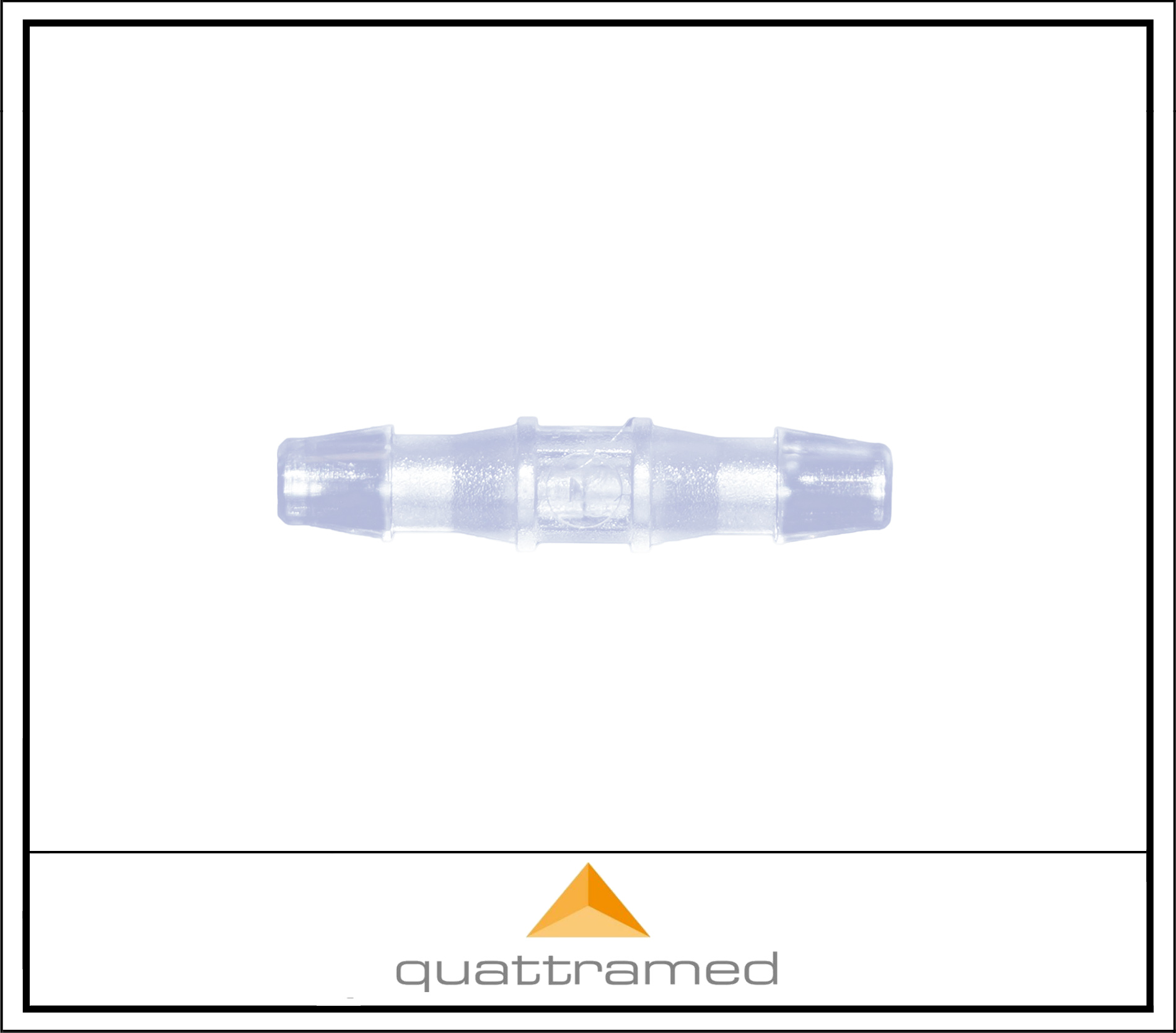

Adapter, 1/16″, 1/16″, tr

  • Description Tube Connector, E: 1/16″, O: 1/16″
  • Dimension E: 1/16″, A: 1/16″
  • Colour transparent
  • Material PC
  • Item Code QTM 1-0253-1
  • Drawing View

Adapter, 3/32″, 3/32″, nat

  • Description Tube Connector, E: 3/32″, O: 3/32″
  • Dimension E: 3/32″, A: 3/32″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0272-0
  • Drawing View

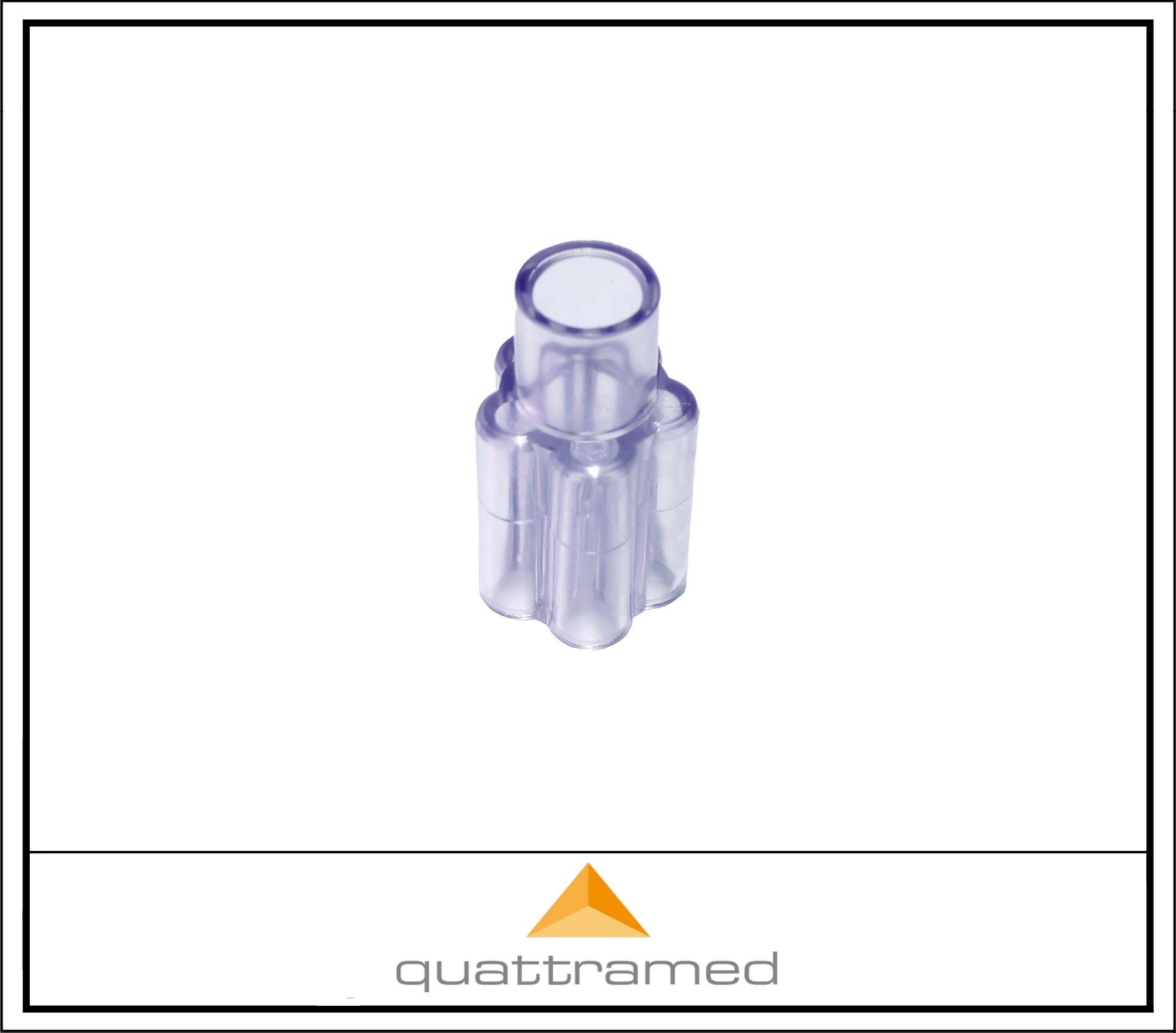

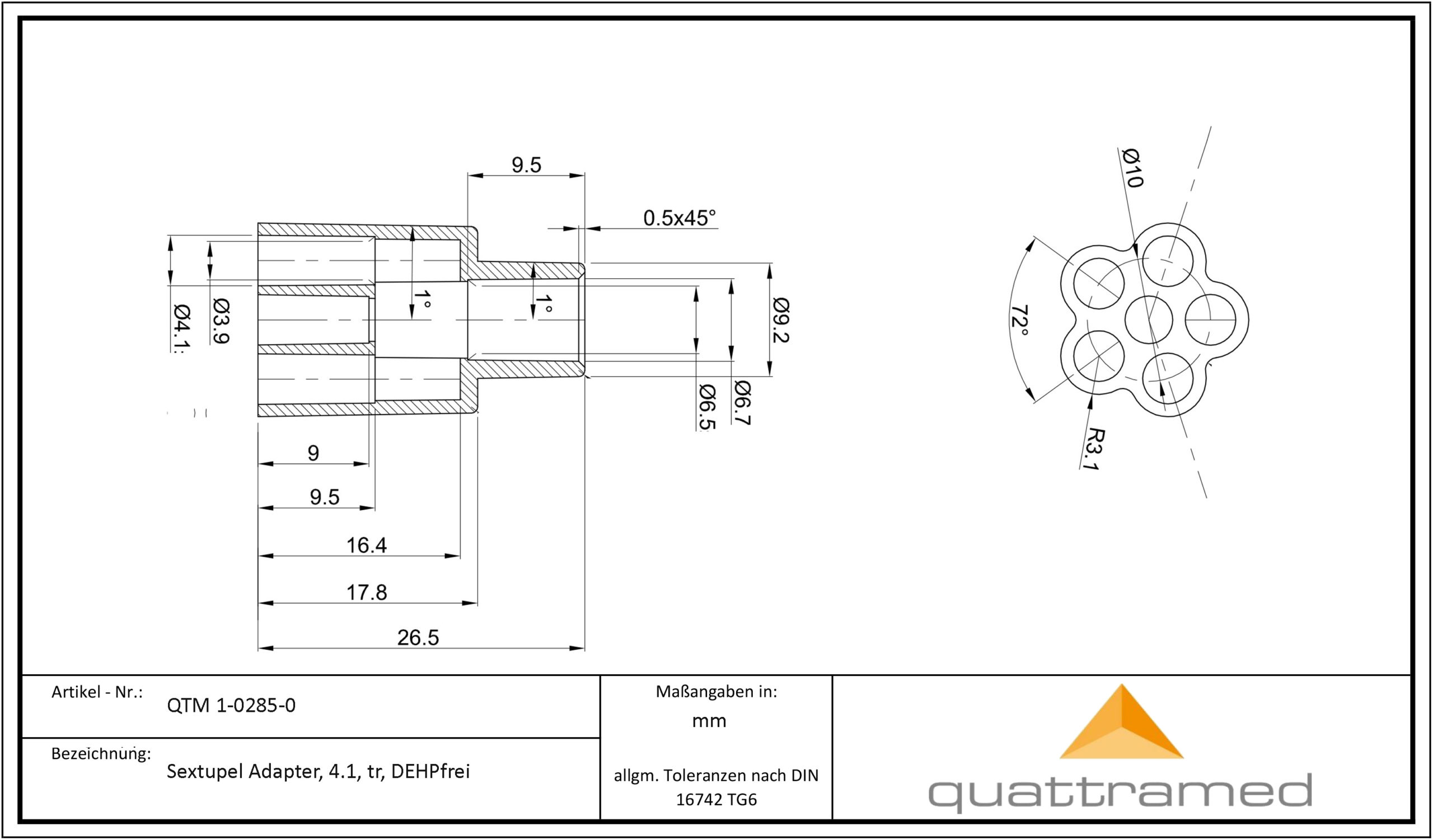

Sextupel Adapter, 4.1, tr, DEHPfrei

  • Description Tube Connector, Sextupel – Tube Size 4.1, Diethylhexyl phthalate-free
  • Dimension D: 4.1
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0285-0
  • Drawing View

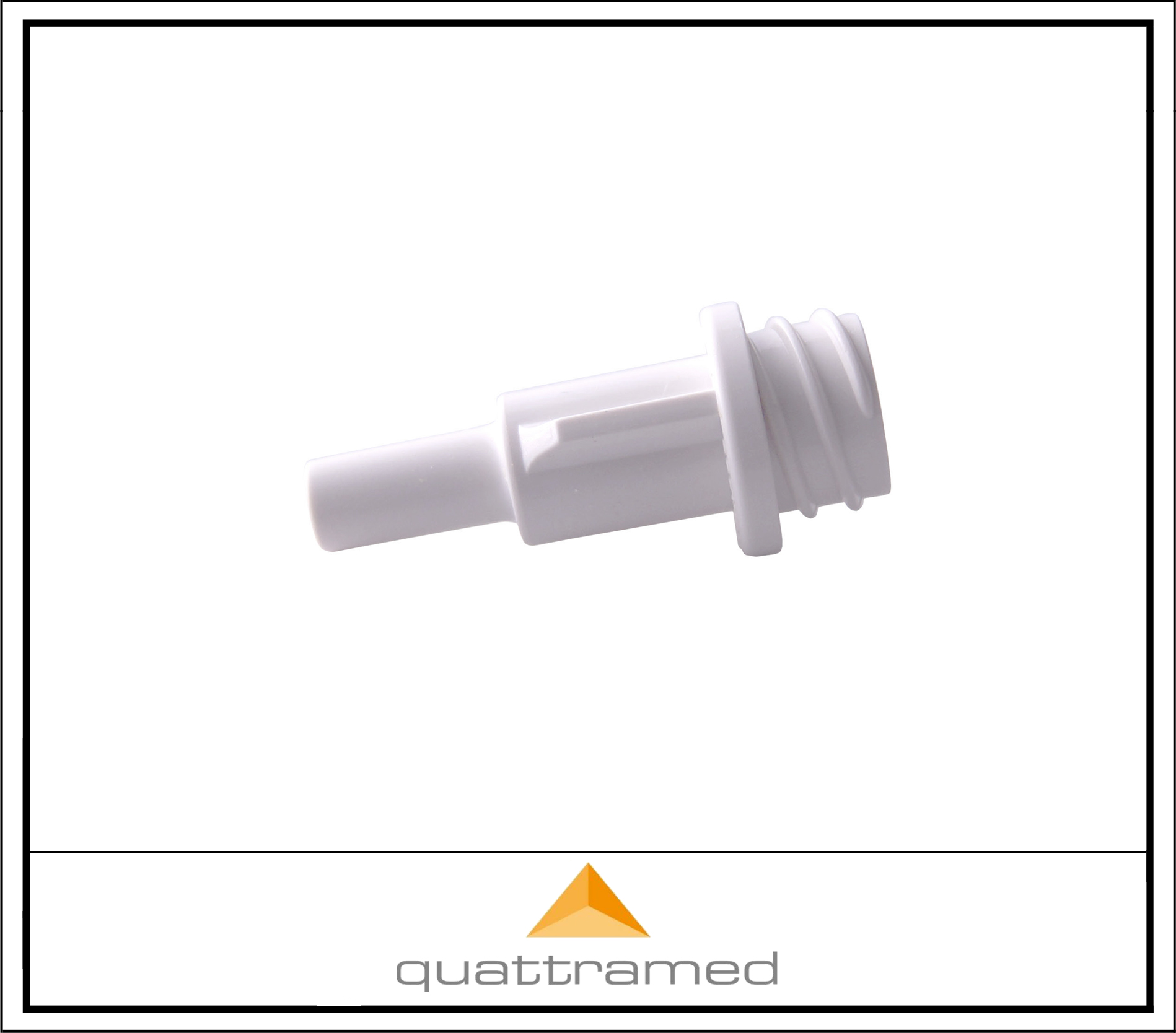

Adapter, LBw, OD5.3, ws, #98613

  • Description Connector, Large Borge Female – Tube Size outside: 5.3
  • Dimension LBf, Da: 5.3
  • Colour white
  • Material ABS
  • Item Code QTM 1-0346-0
  • Drawing View

Adapter, 7-10, 7-10, ws

  • Description Connector, stepped connector, steps from 7-10mm, both sites
  • Dimension I: 7-10, A: 7-10
  • Colour white
  • Material PP
  • Item Code QTM 1-0351-0
  • Drawing View

Adapter, OD 6.1, OD 6.1, tr, #51469

  • Description Tube Connector, Do: 3x 6.1
  • Dimension Da: 2x 6.1
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0388-0
  • Drawing View

Adapter, 5.5/6.8, 5.5/6.8, tr, #13145

  • Description Tube Connector, Di: 2x. 5.5, Do: 2x 6.8
  • Dimension Di: 2x 5.5, Da: 2x 6.8
  • Colour transparent
  • Material PVC
  • Item Code QTM 1-0389-0
  • Drawing View

Adapter, 1/8″, 1/16″, nat

  • Description Tube Connector, E: 1/8″, O: 1/16″
  • Dimension E: 1/8″, A: 1/16″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0423-0
  • Drawing View

Adapter, DUNIw, 6.8, dkbl, #31318

  • Description Female Dialysis Connector – Tube Size: 6.8
  • Dimension D: 6.8
  • Colour dark blue
  • Material PVC
  • Item Code QTM 1-0463-0
  • Drawing View

Kreuzstück, 1/4″, 1/4″, 1/4″, 1/4″, nat

  • Description Cross Connector, 4×90°, 1/4″
  • Dimension D: 4x 1/4″
  • Colour natural
  • Material PP
  • Item Code QTM 1-0478-0
  • Drawing View
