Directional taps

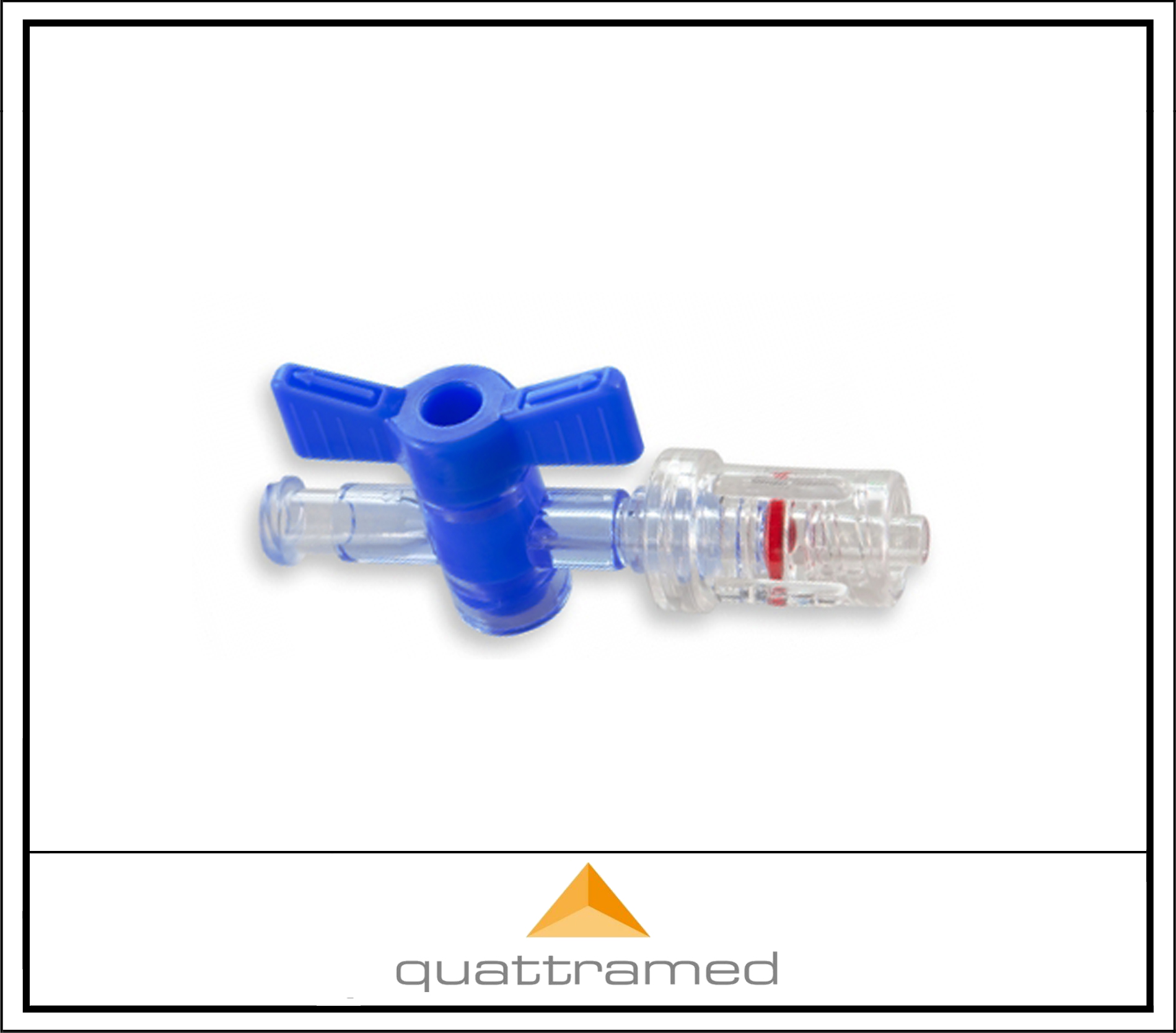

1-Wegehahn, HD, LLw-LLm, rot, tr/bl

  • Description 1-Way Stopcock, High Pressure, Female Luer Lock – Male Luer Lock, rotating
  • Dimension LLf-LLm
  • Colour transparent-blue
  • Material PVC, POM, EPDM
  • Item Code QTM 1-0041-0
  • Drawing View

1-Wegehahn, LLm-LLm

  • Description 1-Way Stopcock, Male Luer Lock – Male Luer Lock
  • Dimension LLm-LLm
  • Colour transparent-white
  • Material PC, PE
  • Item Code QTM 1-0080-0
  • Drawing View

4-Wegehahn, HF, 5.5-5.5, LLw

  • Description 4-Way Stopcock, High-Flow, Female Luer Lock – Tube Size: 5.5-5.5
  • Dimension LLf, D: 5.5-5.5
  • Colour transparent-purple
  • Material PC, PP
  • Item Code QTM 1-0083-0
  • Drawing n/a

3-Wegehahn, LLm-LLw, LLw, tr/ws, 116psi, #99750

  • Description 3-Way Stopcock, Male Luer Lock – Female Luer Lock, Branch: Female Luer Lock, 116psi
  • Dimension LLm-LLf, Lf
  • Colour transparent-white
  • Material PC, PE
  • Item Code QTM 1-0166-0
  • Drawing View

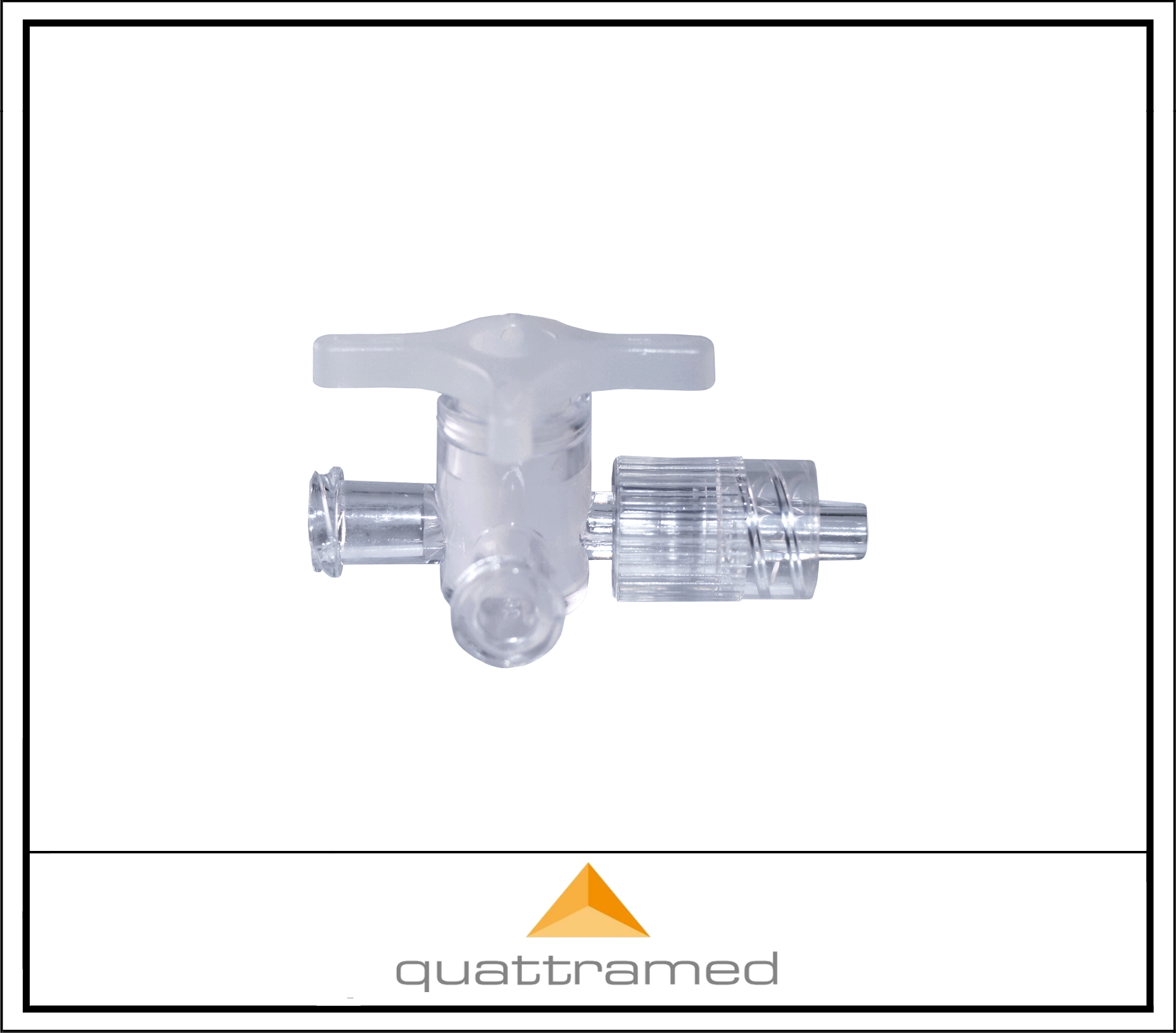

4-Wegehahn, LLw-LLm, LLw, tr/ws, 130psi, #99690

  • Description 4-Way Stopcock, Female Luer Lock – Male Luer Lock, Branch: Female Luer Lock, 130psi
  • Dimension LLf-LLm, LLf
  • Colour transparent-white
  • Material PC, PE, ABS
  • Item Code QTM 1-0200-0
  • Drawing View

4-Wegehahn, LLw-LLm, LLw, tr/ge, #99720

  • Description 4-Way Stopcock, Female Luer Lock – Male Luer Lock; Branch: Female Luer Lock
  • Dimension LLf-LLm, LLf
  • Colour transparent-yellow
  • Material PC, PMMA, PE
  • Item Code QTM 1-0221-0
  • Drawing View

1-Wegehahn, LLw-LLm, tr/rt, #99724

  • Description 1-Way Stopcock, Female Luer Lock – Male Luer Lock
  • Dimension LLf-LLm
  • Colour transparent-red
  • Material PC, PE
  • Item Code QTM 1-0243-0
  • Drawing View

1-Wegehahn, LLw-LLm, tr/ws, #99759

  • Description 1-Way-Description, Female Luer Lock – Male Luer Lock
  • Dimension LLf-LLm
  • Colour transparent-white
  • Material PSU, HDPE, PC
  • Item Code QTM 1-0291-0
  • Drawing View

1-Wegehahn, HD, LLw-LLm, ws/tr, 200psi, #99726

  • Description 1-Way Stopcock, High Pressure, Female Luer Lock – Male Luer Lock, 200psi
  • Dimension LLf-LLm
  • Colour white
  • Material PC, POM
  • Item Code QTM 1-0302-0
  • Drawing View

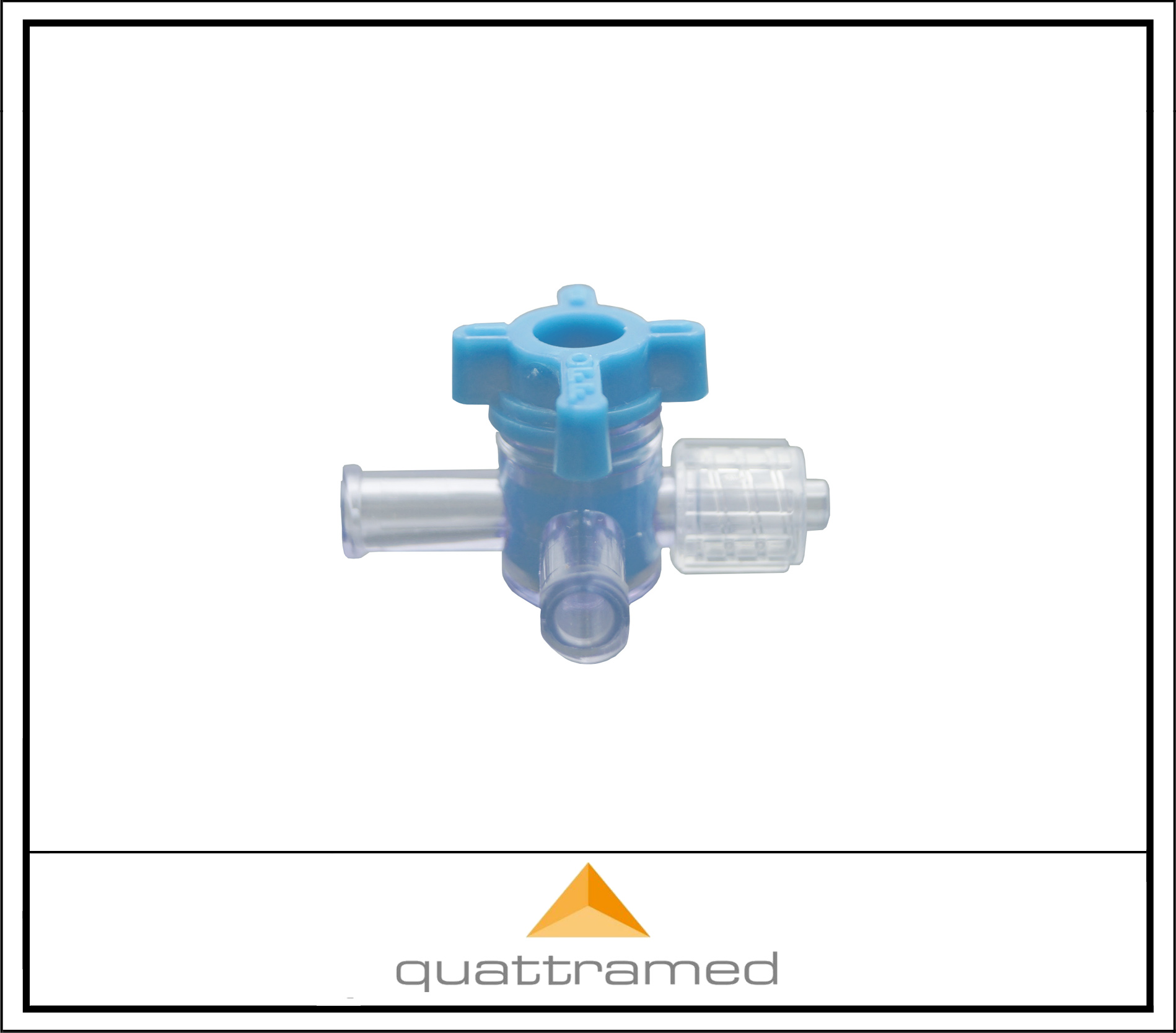

2-Wegehahn, LLm-LLw, LLw, tr/bl, #99752

  • Description 2-Way Stopcock, Male Luer Lock – Female Luer Lock, Branch: Female Luer Lock
  • Dimension LLm-LLf, LLf
  • Colourtransparent-blue
  • Material PC, PE, PMMA
  • Item CodeQTM 1-0303-0
  • Drawing View

4-Wegehahn, LLw-LLm, LLw, tr/gn

  • Description 4-Way Stopcock, Female Luer Lock – Male Luer Lock, Branch: Female Luer Lock
  • Dimension LLf-LLm, LLf
  • Colour transparent-green
  • Material PSU, PE, PC
  • Item Code QTM 1-0329-0
  • Drawing View

3-Wegehahn, LLw-LLw, LLw, tr/ws, 200psi, #99699

  • Description 3-Way Stopcock, Female Luer Lock – Female Luer Lock, Banch: Female Luer Lock, 200psi
  • Dimension LLf-LLf, LLf
  • Colour transparent-white
  • Material PC, POM
  • Item Code QTM 1-0372-0
  • Drawing View

4-Wegehahn, LLw-LLm, LLw, tr/ws, m. Kappen

  • Description 4-Way Stopcock, Female Lue Lock – Male Luer Lock, Branch: Female Luer Lock with Caps
  • Dimension LLf, LLm, LLf
  • Colour transparent-white
  • Material PC, PE, PP, SIK
  • Item Code QTM 1-0404-0
  • Drawing View

1-Wegehahn, LLw-LLm, tr/bl, m. Kappen

  • Description 1-Way Stopcock, Female Luer Lock – Male Luer Lock with Caps
  • Dimension LLf-LLm
  • Colour transparent-blue
  • Material PC, PE, SIK
  • Item Code QTM 1-0406-0
  • Drawing View

1-Wegehahn, LLw-Lm, tr/ws, #99780

  • Description 1-Way Stopcock, Female Luer Lock – Male Luer
  • Dimension LLf-Lm
  • Colour transparent-white
  • Material PC, PE
  • Item Code QTM 1-0430-0
  • Drawing View

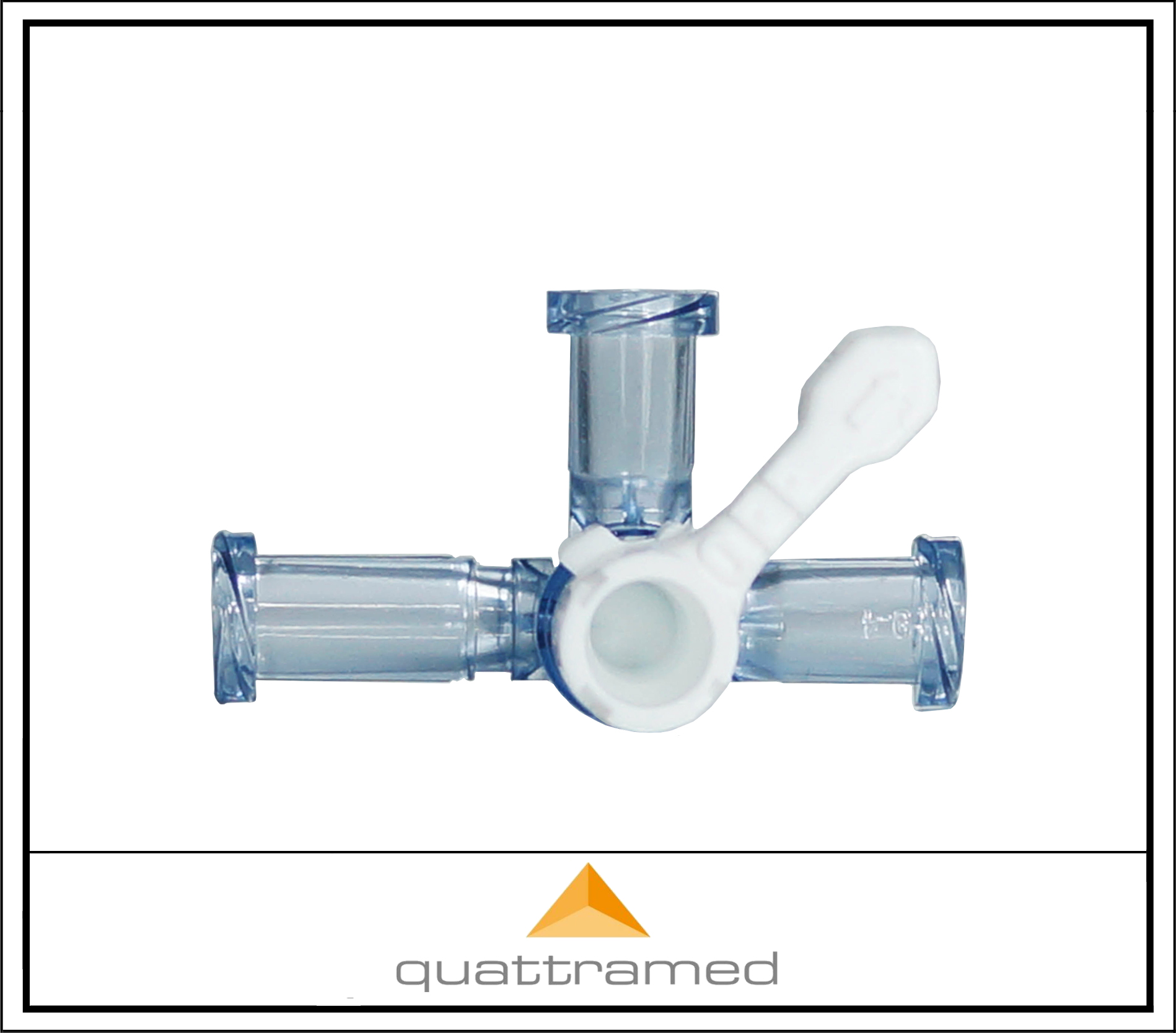

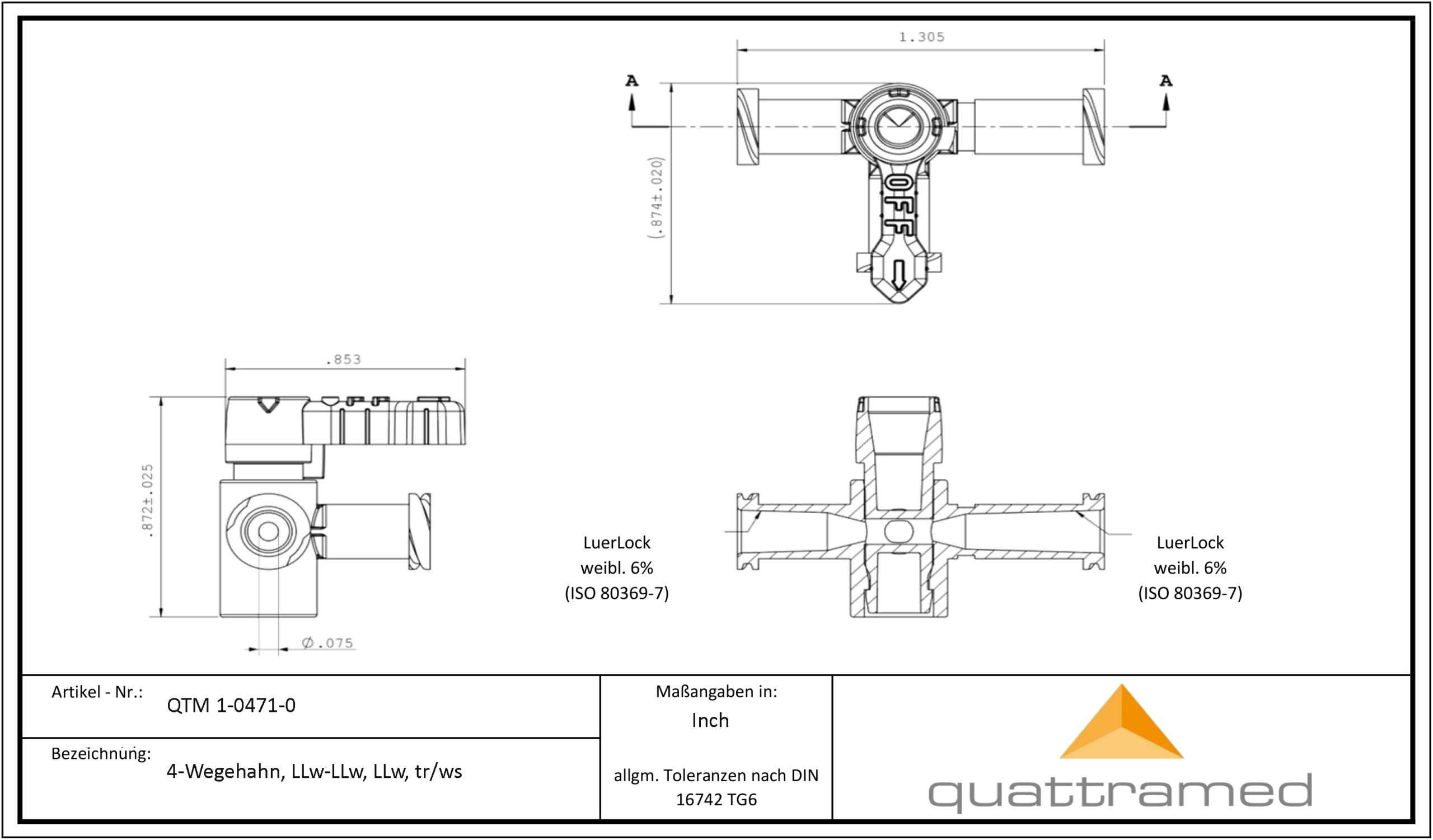

4-Wegehahn, LLw-LLw, LLw, tr/ws

  • Description 4-Way Stopcock, Female Luer Lock – Female Luer Lock (rotable nut), Branch: Female Luer Lock
  • Dimension LLf-LLf, LLf
  • Colour transparent/white
  • Material PC, PE
  • Item Code QTM 1-0471-0
  • Drawing View

3-Wegehahn, LLw-LLm, LLw, tr/ws

  • Description 3-Way Stopcock, Female Luer Lock – Male Luer Lock (rotable nut), Branch: Female Luer Lock
  • Dimension LLf-LLm, LLf
  • Colour transparent/white
  • Material PC, PE
  • Item Code QTM 1-0472-0
  • Drawing View

3-Wegehahn m. Kappen, LLm-LLw, LLw, tr/bl

  • Description 3-Way Stopcock with Caps, Male Luer Lock – Female Luer Lock, Branch: Female Luer Lock
  • Dimension LLm-LLw, LLw
  • Colour transparent/blue
  • Material PSU, PE
  • Item Code QTM 1-0485-0
  • Drawing View

4-Wegehahn, LLw-LLm, LLw, tr/ws, #99714

  • Description 4-Way Stopcock, Female Luer Lock – Male Luer Lock (rotable nut), Branch: Female Luer Lock
  • Dimension LLf-LLm, LLf
  • Colour transparent/white
  • Material PC, PE
  • Item Code QTM 1-0003-0
  • Drawing View
